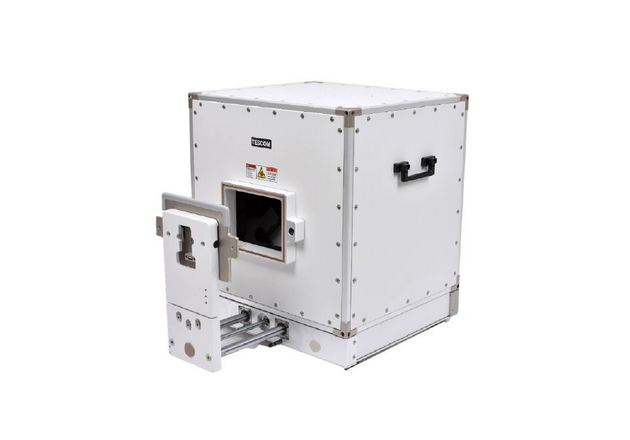

TESCOM TC-5955AP 气动屏蔽箱

◈ Mechanical Specifications

Basic RF Connectors without I/O Interface module: 16, N(f) outside to SMA(f) inside

Basic Data Connector : None

Remote control : RS-232C, 3 wire, DB9(s)

Air connection

- Main connector : 6 mm OD hose, one-touch push-on fitting

- Input air pressure : 5 to 10 bar

Dimension

- Outside:   534(W) x 526(D) x 583(H) mm, door closed. 786(D) mm, door open

- Door Size : 176(W) x 130(H) mm

- Door Stroke (Open/Close) : 260 mm

Weight : Approx.39 kg

Packing

- Size :  680 (W) x 640(D) x 730(H) mm

- Weight : Approx.46kg

The size or weight of a package may vary on how to pack a package.

Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

- 100 to 2000 MHz : > 60 dB

- 2000 to 3000 MHz : > 60 dB

- 3000 to 6000 MHz : > 60 dB

Detail

Datasheet


Features

◈ Reliable High RF Shielding up to 6 GHz

◈ Designed for long life

◈ Specifically designed for various types of mobile phones

◈ Pneumatic control of lid open-close

◈ Absorbing materials for stable measurement results

◈ EMI filters on all data ports and power line

◈ Remote operation by RS-232C

Dimensions

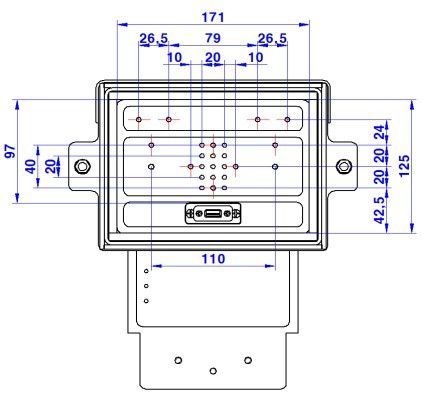

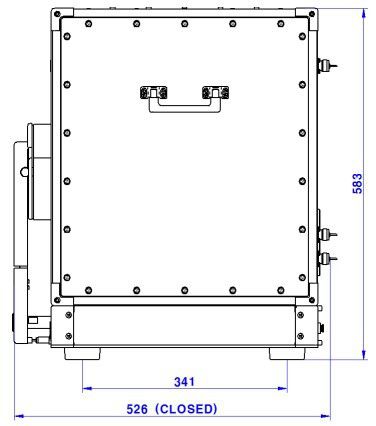

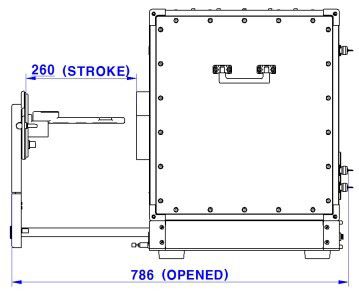

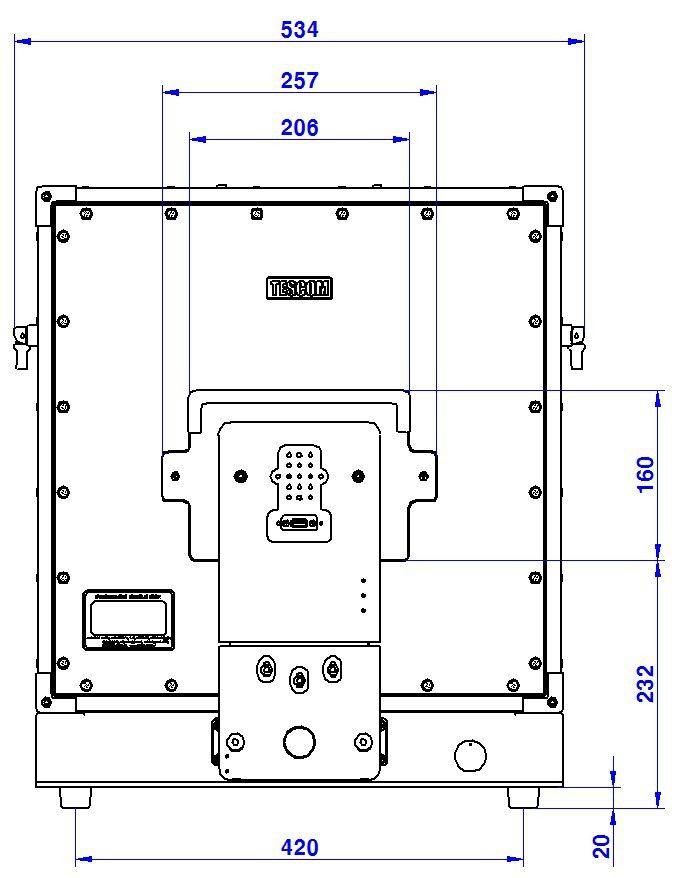

TC-5955AP Outer Dimension

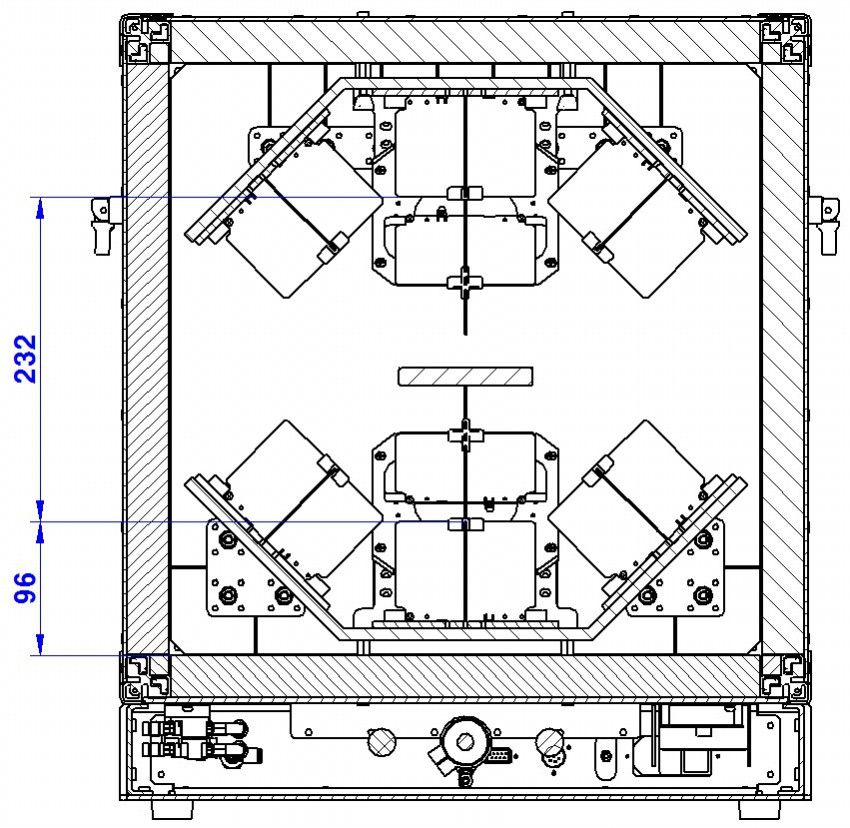

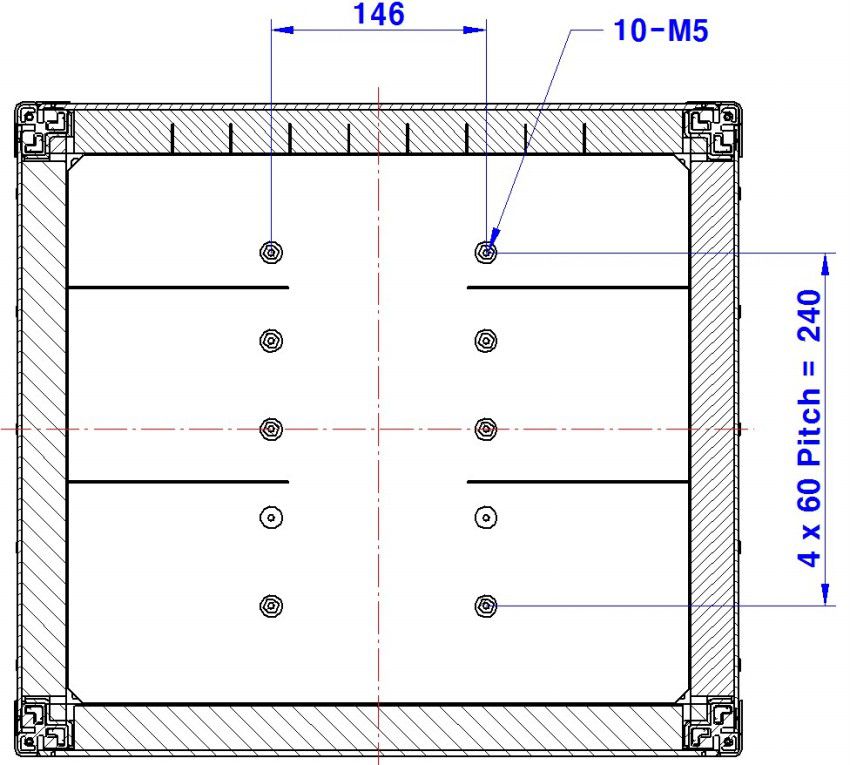

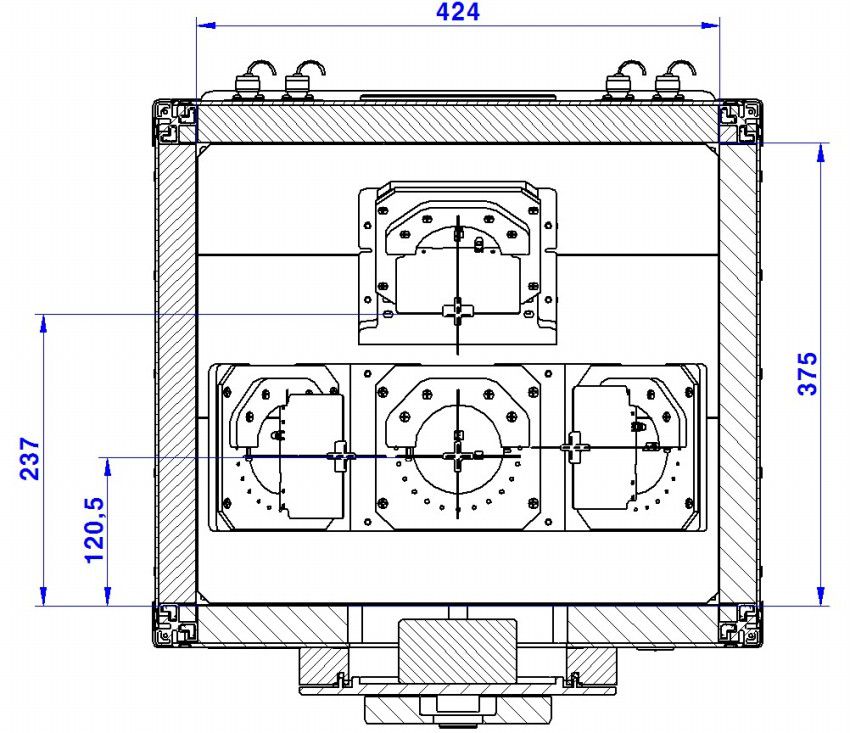

TC-5955AP Inner Dimension
