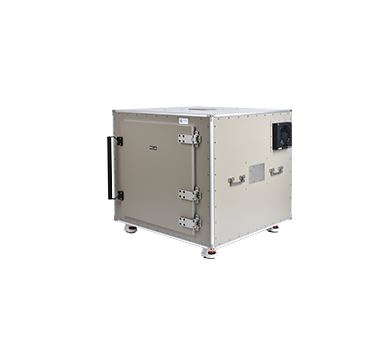

TESCOM TC-5977A 屏蔽箱

◈ Mechanical Specifications

Basic I/O connectors

RF connectors: three(3) N(f) outside and SMA(f) inside

Dimensions

- Inside : 802(W) x 762(D) x 644(H) mm

- Outside : 916(W) x 940(D) x 871(H) mm

- Door : 588(W) x 588(H) mm

Weight : Approx. 73 kg

Packing (The size or weight of a package may vary on how to pack a package.)

- Size : 1100(W) x 1100(D) x 1030(H) mm

- Weight : Approx. 93 kg

◈ Typical RF Shielding

The shielding effectiveness below is measured when the blank panel is mounted; other I/O interface panel results a different shielding effectiveness of the shield box.

Frequency / Shielding effectivness (dB)

- 100 to 2000 MHz : > 70 dB

- 2000 to 3000 MHz : > 70 dB

- 3000 to 6000 MHz : > 60 dB

◈ Absorber Reflectivity

Measured the reflected signal from the absorber with metal plate using the VNA.

Frequency / Reflectivity (dB)

- 500 to 2000 MHz : 15 dB(Typ.)

- 2000 to 6000 MHz : 20 dB(Typ.)

Details

Datasheet


Key Features

◈ Reliable High RF Shielding up to 6 GHz

◈ Specifically designed for various types of Large Device

◈ Side Cooling Fans

◈ EMI filters on all Data ports

◈ Easy Opening/Closing of Door

◈ Customizable Data connections

Dimensions

TC-5977A Inner Dimension












TC-5977A Outer Dimension














TC-5977A Door Opened
