TESCOM TC-93061A 天线耦合器

Frequency Range: 800 ~ 6000 MHz

RF Connector: SMA(f)

Dimension:  106 (W) x 130 (D) x 15.6 (H) mm

Weight: 300 g

Terminal: 50 Ohm

VSWR: better than 1 : 2.2 (Typ 1.8)

Polarization: TC-93061A (RHCP)

Detail

Datasheet


Features

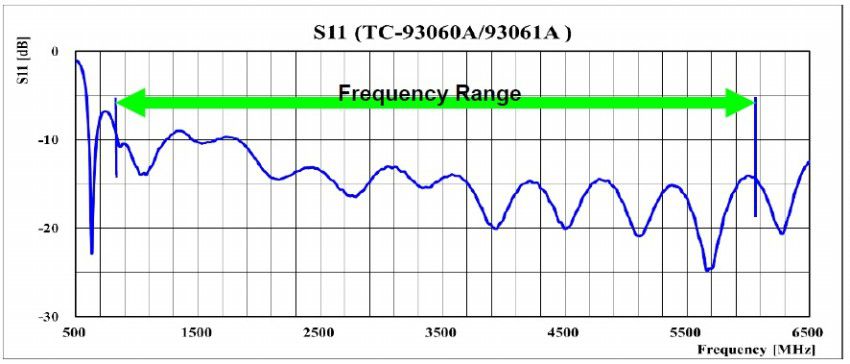

■ Typical S11 and VSWR Data of TC-93061A (T=25℃)


■ Polarization of TC-93061A


■ Dimensions

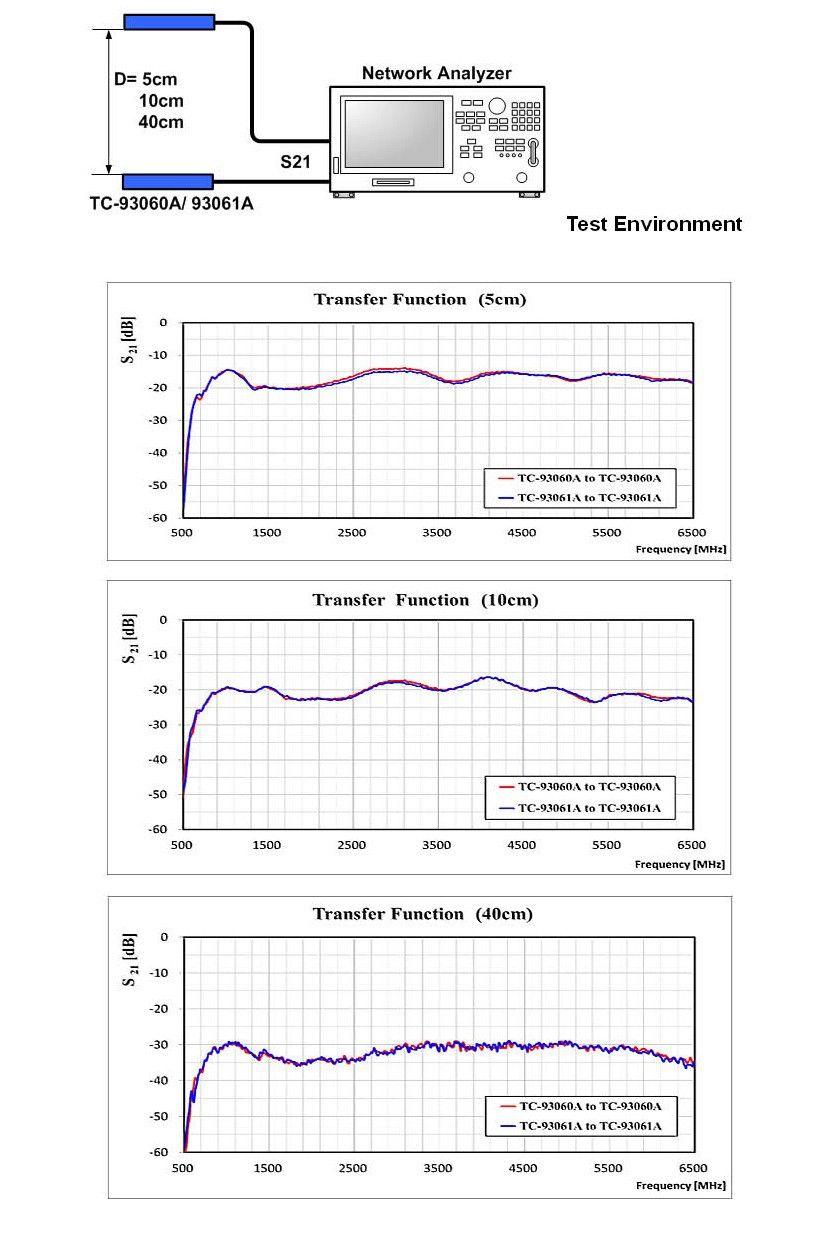

■ Transfer function difference between TC-93061A


■  Field distribution of TC-93061A

- Measured in open area through Dipole Antenna (0.9 &1.8 &2.4 &5.8 GHz, Tescom)

- Distance from Antenna Coupler (TC-93060A/93061A) to Dipole Antenna: 5 cm

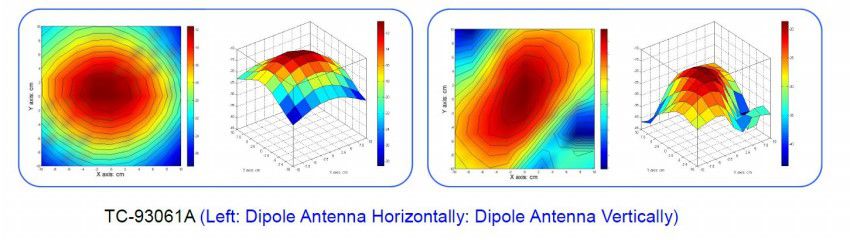

■  Path Loss Distribution at 900 MHz

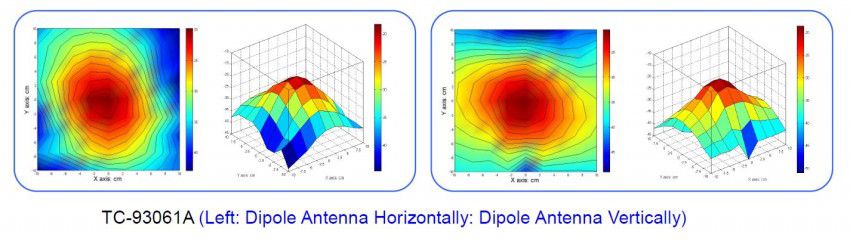

■  Path Loss Distribution at 1800 MHz

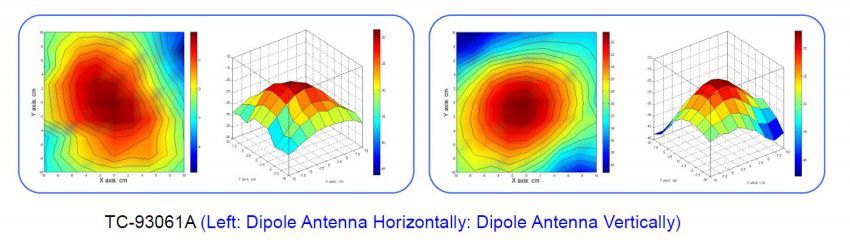

■  Path Loss Distribution at 2400 MHz

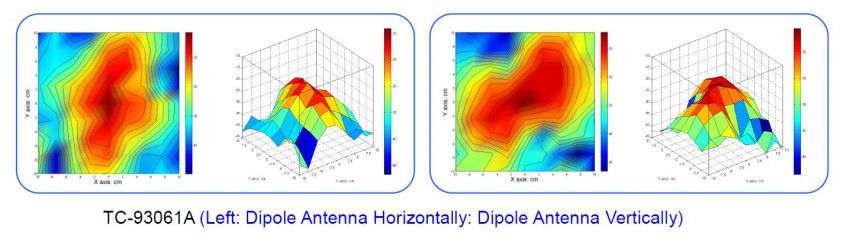

■  Path Loss Distribution at 5800 MHz
