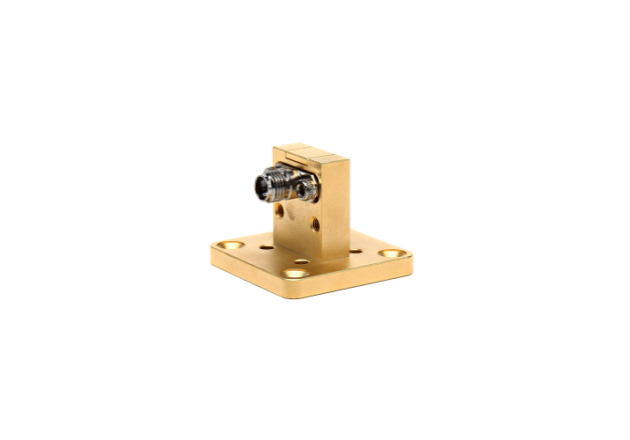

| 制造商: | Tescom |
| Model: | TC-93480A |
| 来源: | Korea |
| 保障: | 12 Month |
Configurations:
- EIA Waveguide : WR-28
- Frequency Range: 26.5 GHz to 40 GHz
- RF Connector
+ Connector type: 2.92 mm (K-Type) Female
+ Body Material and Plating: Stainless Steel
Electrical Specifications:
- Frequency Range 26.5 GHz to 40 GHz
- Insertion Loss <0.4 dB
- VSWR < 1.7
- Impedance: 50 Ω
Mechanical Specifications:
Size (mm): 24(L) x 32(W) x 32(H)
Weight: approx. 46 g
