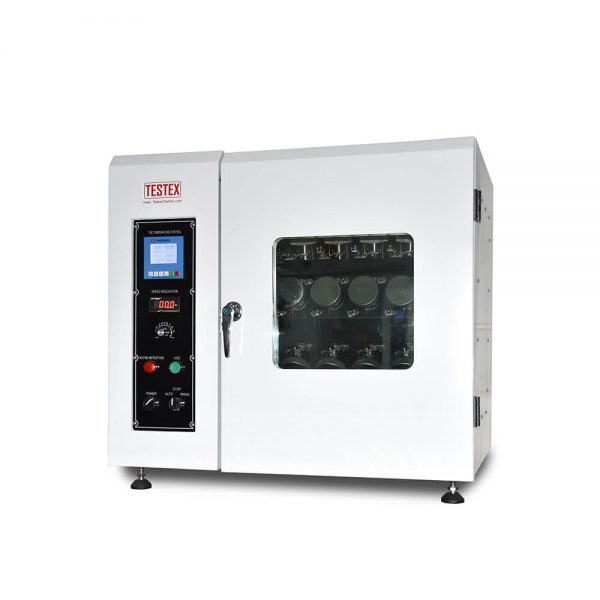

Power: 220/110V 50/60Hz 4kW
Weight: 155 kg
Dimensions: 920 x 840 x 1070 mm (L x W x H)
Temperature range: 30-140 °C
Heating or cooling speed: 0.5 – 3.5 °C / min
Temp. Control accuracy: 1 °C
Rotation speed: 0 – 30 rpm (adjustable)
Dyeing Beaker : 24 pots / 300ml
Liquor Ratio : 1:5 ~ 1:100
Three-dimensional turning, clockwise and anti-clockwise running makes level dyeing results.
Beakers are made of quality SUS316 stainless steel, heating fast and level, specially pressure-tested beakers offer maximum safety for atmospheric and high-temperature dyeing.
Infrared heating continuously (non-off-type) by durable life infrared heaters which 360-degree ring-shape, direct heating of steel cup, to let dyeing equably and saving 50% electricity.
The programmable computer system controls the dyeing system’s process, can save up to 99 kinds of process, LCD displays temperature, time, process No. and temperature curve, imported high-precision PT-100 temperature probe monitoring the actual temperature of dyeing liquor directly, to let heating and cooling automatically.
