在Testex实验室TD300中使用的磁性打印机

Manufacturer: Testex

Model: TD300

Origin: China

Warranty: 12 months


Power: 220/110V 50/60Hz

Weight: 100 kg

Dimensions: 900 x 640 x 380 mm(L x W x H)

Printing area: 500 x 350mm

Screen frame size: 650 x 480mm

Magnetic stick: Dia. 8, 12, 16, 20, 25mm, 350mm in length.(Each machine equipped with 1 Dia. 20mm magnetic stick only)

Drive mode: Motor – gear box – toothed belt – magnetic block

Operation mode: Running towards the left / right then automatic stop; to and fro.

Speed control: Frequency conversion adjusts speed, digital display, 0 ~ 7 MPM

Magnetic Control: Adjustable magnetic force, 10 steps, digital display

Detail

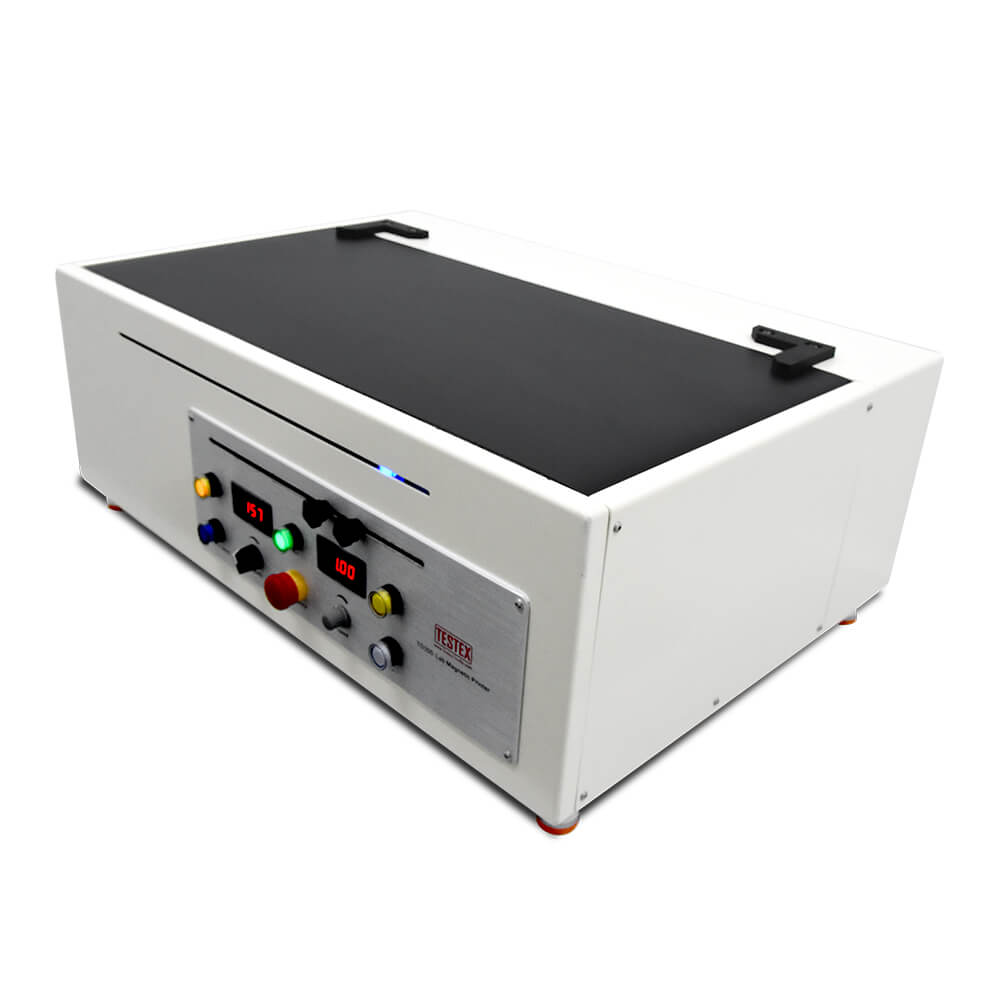

Lab Magnetic Printer (Lab Printing Table) is magnetic printing machine with printing area of 500×350mm, which is for technology experiment in various natural and synthetic fabric in lab.

A thin roller driven by a magnetic block rolling on the silk-screen, printing pressure is displayed digitally and adjustable.

Switzerland Habasit printing belt, Japan Panasonic Frequency conversion, Germany linear slide bearing, China Taiwan Chen-bang Gear-motor, PLC controlled.
