Testex TF002 布料张力计

Power: 220/110V  50/60 Hz

Weight: 200 kg

Dimensions: 840 x 600 x 1900 mm (L x W x H)

Test method: CRE principle

Control system: closed control system, quality motor and ball-screws

Test capacity: 5000 N

Tensile speed: 0.01-1000 mm/min digital speed, error ± 2%

Elongation Resolution: 0.01 mm

Measuring system: high-precision force sensor

Sampling frequency of system: 2000 times/sec.

Force measurement range: 1% of full scale to 100%

Minimum scale value: 0.1 N

Force measurement accuracy: ≤ ± 2% F · S

Working space H 800mm x W 420mm

Gauge distance: limit control, digital setting

Gauge distance accuracy: ± 0.1 mm

Sample holder pneumatic clamping

Built-in intelligent active force and displacement alarm system

High-resolution digital closed-loop controller

Operating temperature range 0 to 38℃

Storage temperature range -10 to 45℃

Humidity range 10% to 90% non-condensing, web bulb method

Power must be free of sparks and surges exceeding 10% of the nominal voltage

Standards: ISO 13934.1/2, ISO 13935.1/2, ISO 9073.3/4, ISO4606

Detail

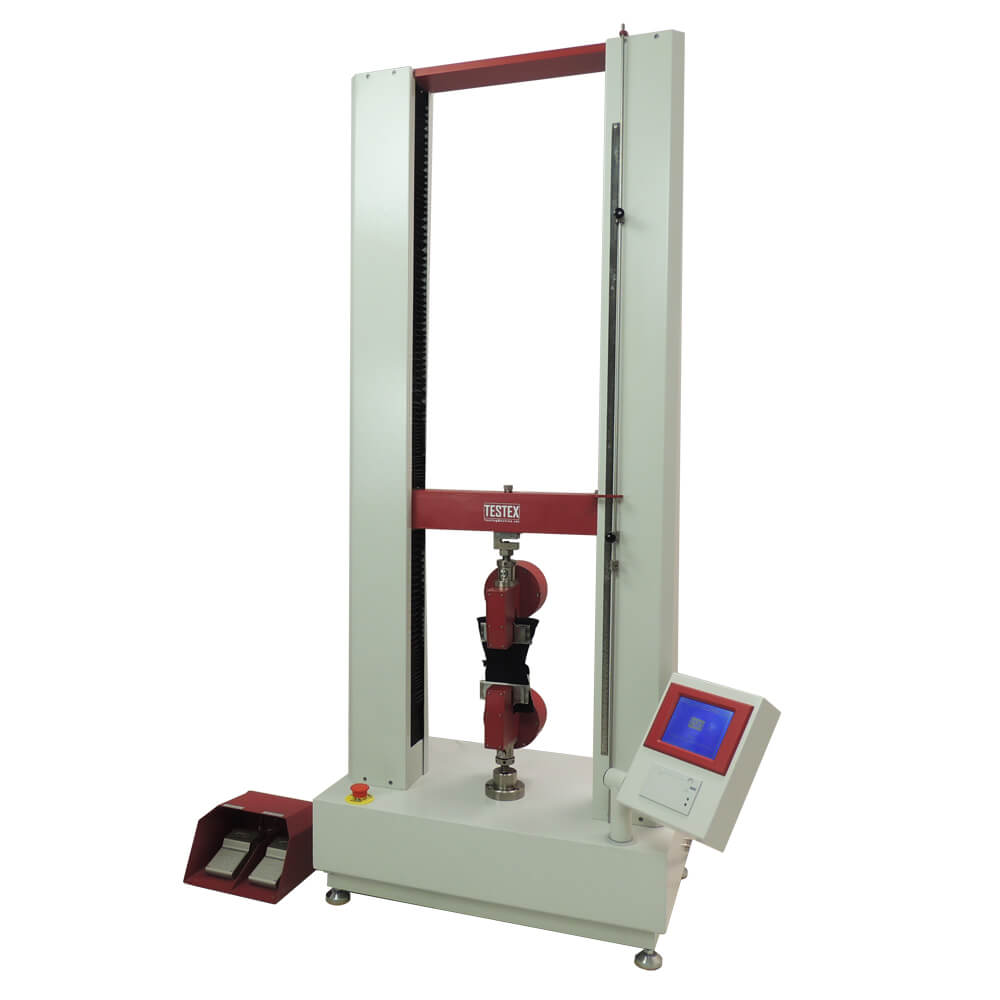

TF002 is dual column type tensile testing machine, PC-operated, Japanese-made AC servo driving system and two quality ball-screws with load cell for ideal and smooth control. The machine talks directly with a standard PC running a data analysis software package, via a high speed RS232 in both ASCII and super high speed binary modes.
