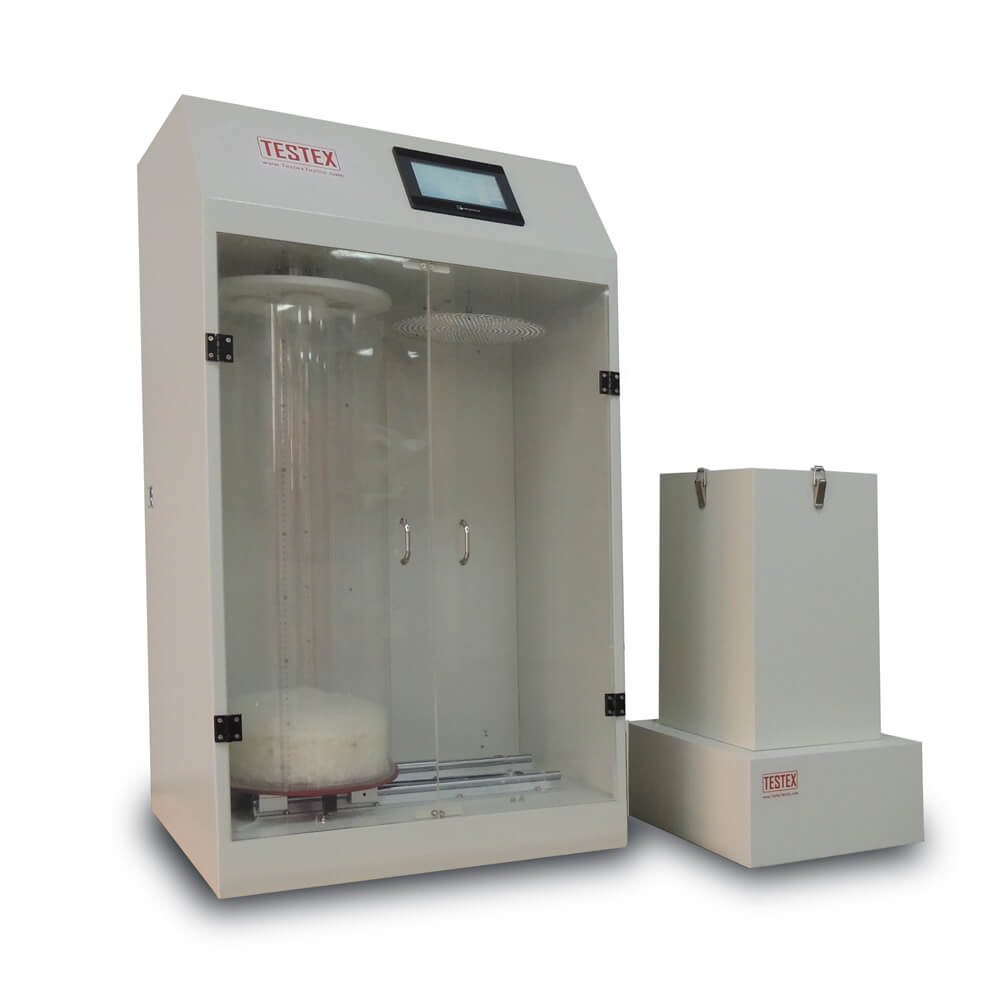

Testex TF135 皮革和填充测试仪

Power: 220V 50Hz 100W

Weight: 270 kg – 2 wooden cases

Dimensions: 880 x 740 x 1460 mm

            500 x 490 x 1070 mm (L x W x H)

Measuring speed: 520±20 mm/min

Measuring height: 750 mm

Measuring accuracy: 0.1 mm

Graduated cylinder internal diameter: 289±1 mm

Plunger and Measuring Rod diameter: 285 mm, weight: 94.3g

Air velocity: (310±50) L/min

Equipped with printer

Standards: BSEN12130, JISL1903,FZ/T80001, GB/T14272-2011, GB/T10288, IDFB-FP


Feather & Down Filling Power Tester, is to determine the filling power (massic volume) of feather and down. Pressure on the sample by dropping the platen is applied to the filling material at a constant speed and the level of the platen is noted after a stipulated time. The massic volume is calculated through the height and the known diameter of the graduated cylinder.


Automatic blowing system

Individual filter system design

DC gear motor driving

SCM controlling

Touch screen operation

Automatically lower done the platen and display the height
