Warranty: 12 months
Power: 220/110V 50/60 Hz 3A
Weight: 83 kg
Dimensions: 860 x 620 x 810 mm (L x W x H)
Upper Roller: Dia. 162+/- 0.5 mm, 70 mm in width
Lower Roller: Dia. 160+/- 0.5 mm, 70 mm in width
Roller Speed: 60+/-5 r/min
Weight: 10N x 1, 20N x 2
Number of test cycles: 5,000
Counter: LCD display, 1- 9, 999 times, adjustable
Standards: BS EN ISO 22776, DIN-3415, SATRA TM 123

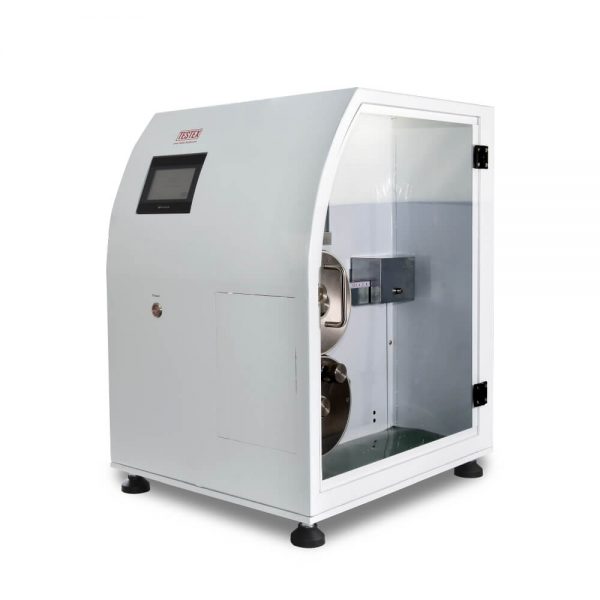

Fastening tape Tester, to determine the capability of hook & loop used for shoes, garments, etc.
Cut the specimen 540mm by 20 or 50mm in dimension from the sample being tested into the wheel of fastening tape tester to be fitted completely. To subject hook & loop to repeated stripping and peeling for a certain number of times. Use tensile machine (another purchase) to measure its peeling strength (AS) and shear strength (PA) after this test.
PLC closed-loop controller controlled. AC servomotor ensures accurate and durable running.
Rigid construction and advanced AC servomotor ensure quiet running.
Transparent plastic cover ensures safe and convenient operating.
