Warranty: 12 months
Power: 220/110V 50/60Hz
Weight: 90 kg
Dimension: 800 x 490 x 740 mm (L x W x H)
Rotation Speed: 100rpm
Measuring Range: 25 mm
Depth Abrasion kits
Surface Abrasion kits
Flex Abrasion kits
Standards: ASTM D3514/D3885/D3886, AATCC 119/120, FTMS191/5300/5302, FORD EFB 15J2/BN 112-01

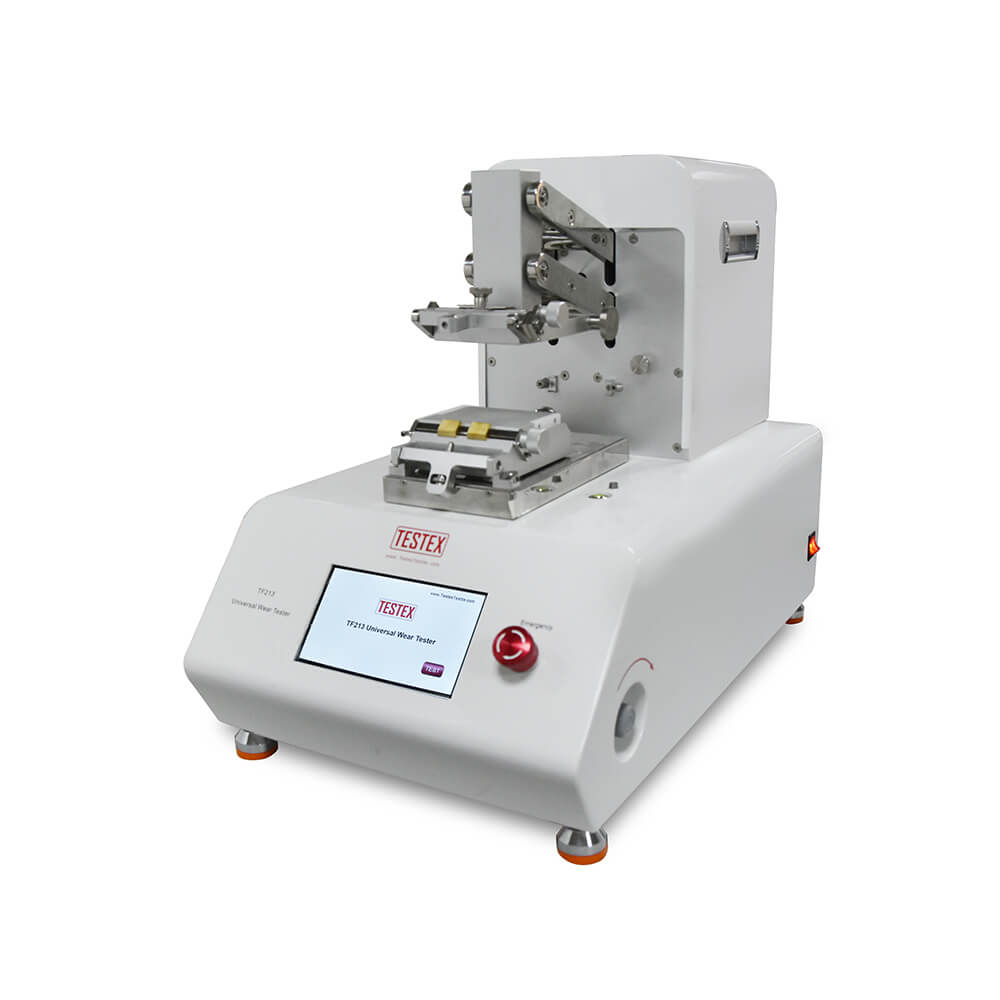

Universal Wear Tester, a multiple functional testing device for determination the wear and abrasion resistance of fabrics used in clothing, footwear and related industries. Universal wear tester supplies with surface abrasion head (inflated diaphragm method) and Flex abrasion head as well as necessary weights and blades. Accessories are available on request for conducting frosting, pilling and edge abrasion tests.
Universal wear tester (UWT for short, stoll universal wear tester) fitted with the built-in timer and mechanical cycle counter; repeatable and reproducible testing is ensured by consistent motor speed providing 120 double strokes per minute of 25mm (1in) stroke length. The improved air injection system for more uniform inflation of the diaphragm used in surface abrasion testing, and a superior clamping mechanism for repeatable specimen tension.
