Power: 220/110V 50/60Hz 2A
Weight: 36 kg
Dimensions: 530 x 490 x 740 mm (L x W x H)
Time Display and accuracy: 0-999.9s, 0.1s
Ignition time: 1 +/- 0.05s
Dimension of holder outside: 205 x 76 mm, interior 165 x 40 mm
Distance from nozzle to specimen: 8mm
Standards: ASTM D1230, FTMS191-5908, 16 CFR -1610, CALIF TB117

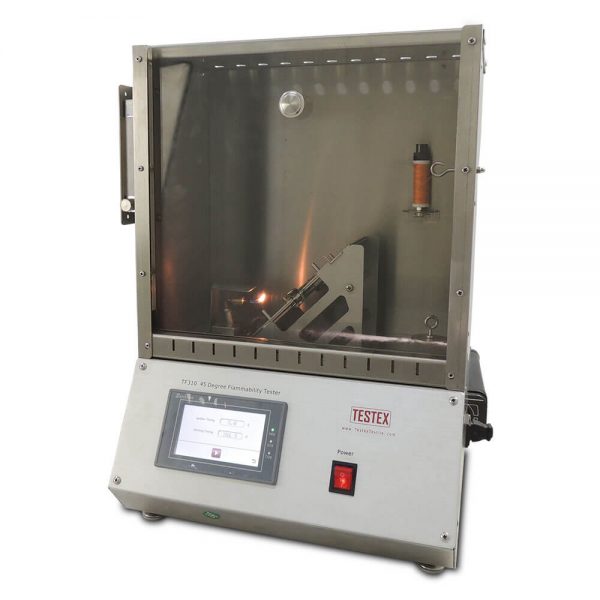

45 Degree Flammability Tester creates a controlled condition for testing the fabric flammability, fabric burning test in the determined 45-degree direction. The automatic igniter is equipped to ensure the 45-degree fabric flammability tester safe and easy to operate.
Stainless steel test cabinet with glass observation panel provides with automatic timing of flame spread in 0.1-second increments from the ignition. Brushing Device is included.
