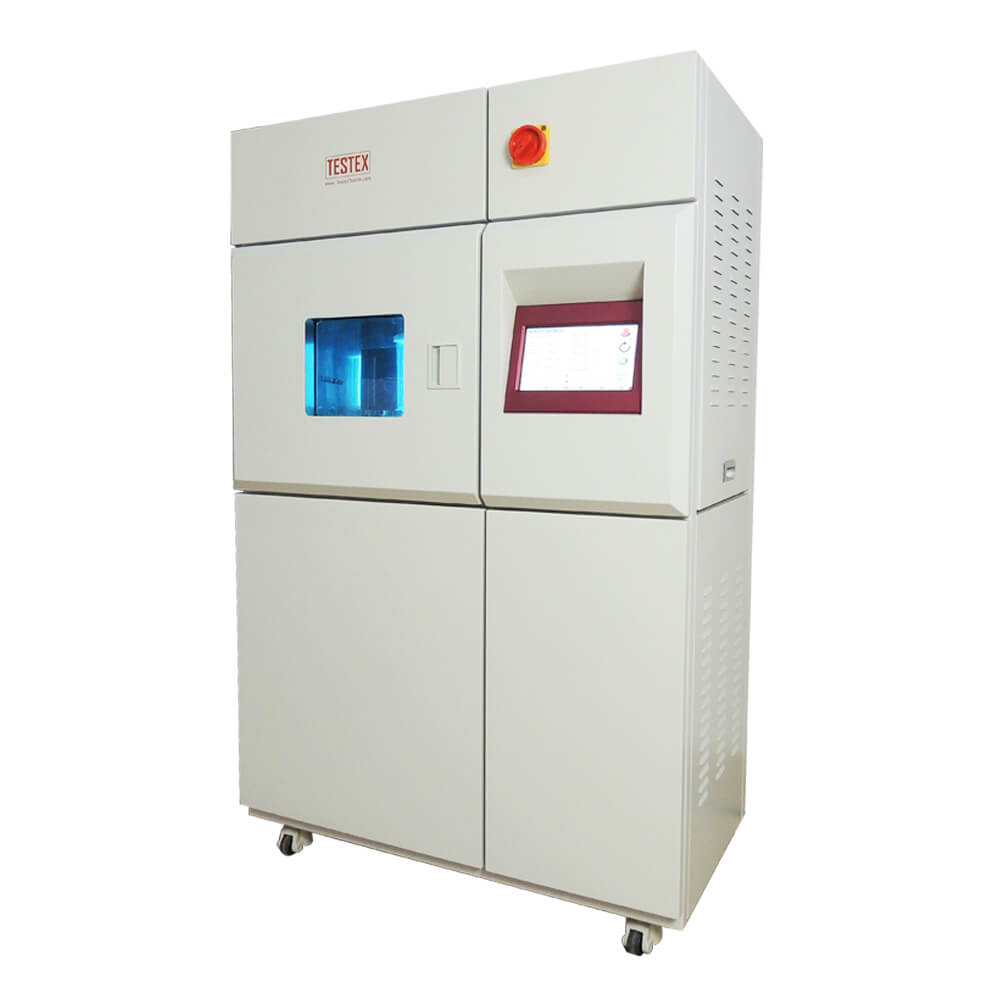

Testex TF420 光和天气试验箱

Power: 220V 50Hz 6kW

Weight: 350 kg

Dimensions: 1100 x 820 x 1180 mm (L x W x H)

Light source: 2500W air-cooled long-arc xenon lamp

Temperature range: 25 ~ 50 ℃, Resolution 0.1 ℃

Humidity range: Bright cycle 10 ~ 70% RH,

Dark cycle: 30 ~ 95%, R. H., resolution 0.1%

Test time control:  ≤ 1000h

Irradiance:  0.80 ~ 2.01W/m2 @ 420nm (340nm, 300~400nm,

300~800nm is offered on request), Digital set, automatic closed-loop compensation

Irradiance accuracy:  ± 0.02W/m2 @ 420nm

Sample holder

ISO/GB: 135 x 45mm, 16 Pcs

AATCC: 130 x 75mm, 8 Pcs, samples can be held on both sides

Rotation speed of sample holder: 5 rpm

BPT Range: (40 ~ 80) +/- 2℃

BST Range: (40 ~ 85) +/- 1℃


Detail

Features:

Light intensity set digitally, real-time monitoring, closed-loop controlled and automatically adjust to meet the different standards (standard 420nm; 340nm, 300~400nm, 300~800nm is offered on request)

4 inch large color touch panel, a variety of test monitoring modes (animation, digital, graphic) operate easily and clearly.

All key components such as temp, and humidity sensors, ultrasonic himidifier are imported from USA, Japan, Germany, etc.

Blackboard Thermometer (BPT), the Standard Blackboard Thermometer (BST), Irradiance detector and samples placed in the same position, a true reflection of the sample under test conditions, the data displayed as figures, charts, curves on the large color screen, no need to stop for observation.

Detection and wireless transmission using light energy conversion technologies for energy, not the other home power supply.

Sample holders can be timed independently to achieve different tests simultaneity in the same machine

Rated 2500W long arc xenon lamp simulate daylight spectrum.

Industrial temperature control (cooling) system offers quickly and smoothly control

Set of Sample Holders, set of Blue Wool Fabric (L1~L8), Gray Scale (Changing), Arc xenon Lamp and other
