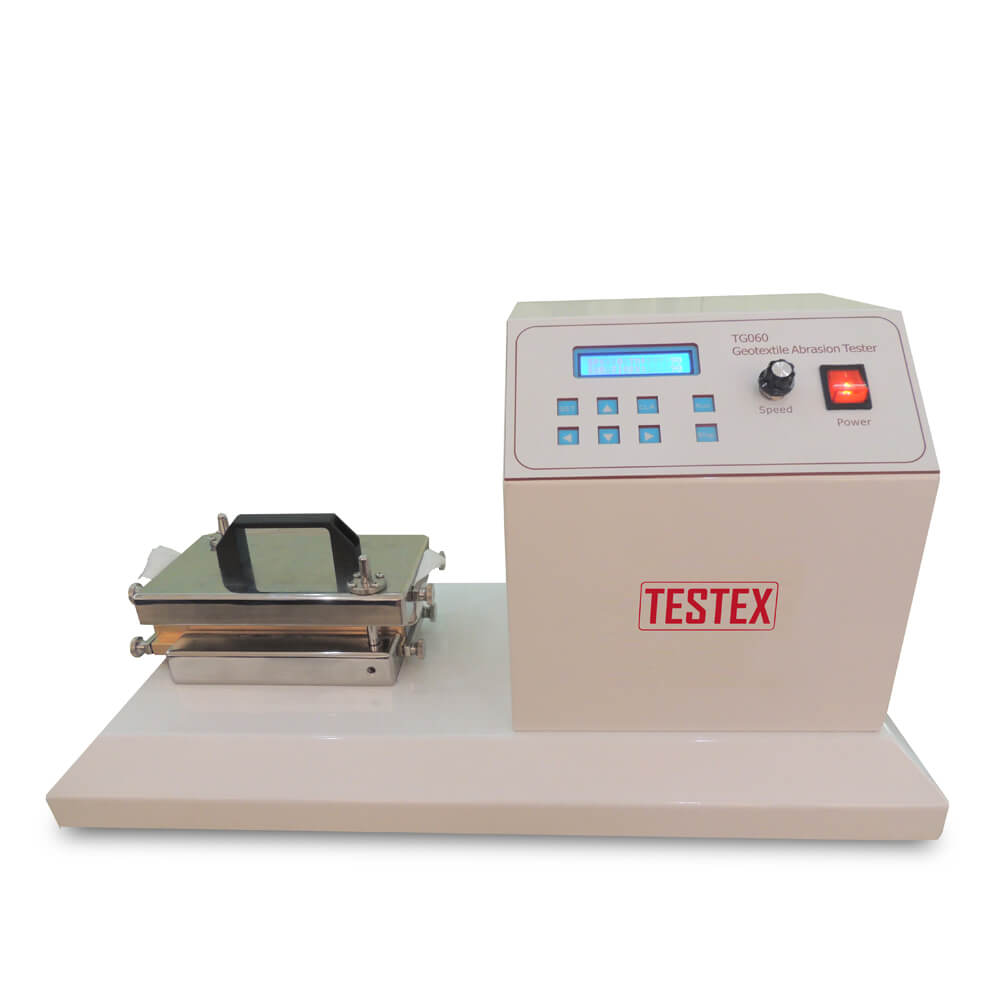

土工织物磨损测试仪Testex TG060

  • 制造商: Testex
    Model: TG060
    保障: 12 month
    • 报价要求 报价要求
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: Testex

Model: TG060

Origin: China

Warranty: 12 months


Power: 220V 50Hz 120W

Weight: 60 kg

Dimensions: 935 x 275 x 350 mm (L x W x H)

Size of lower plate: 50 x 200 mm

Size of upper plate: 50 x 200 mm

Stroke Length: 25 ± 1 mm

Speed: 90 cycles/min

Load pressure: 6 ± 0.01 kg

Eccentricity: 12.5 mm

Sample cut template: 50 x 300 mm ± 1 mm

Chi tiết

Geotextile Abrasion Tester, to determine the abrasion resistance of woven geotextiles, nonwoven geotextile and its related products.

Geotextile Abrasion Tester, to determine the abrasion resistance of woven geotextiles, nonwoven geotextile and its related products.

The specimen is fixed on the platform, and a specified abrasion material rubs the specimen under the specified pressure and friction action, determining the tensile strength after abrasion test. The percentage of loss of the tensile strength is reported as the resistance performance of abrasion.
