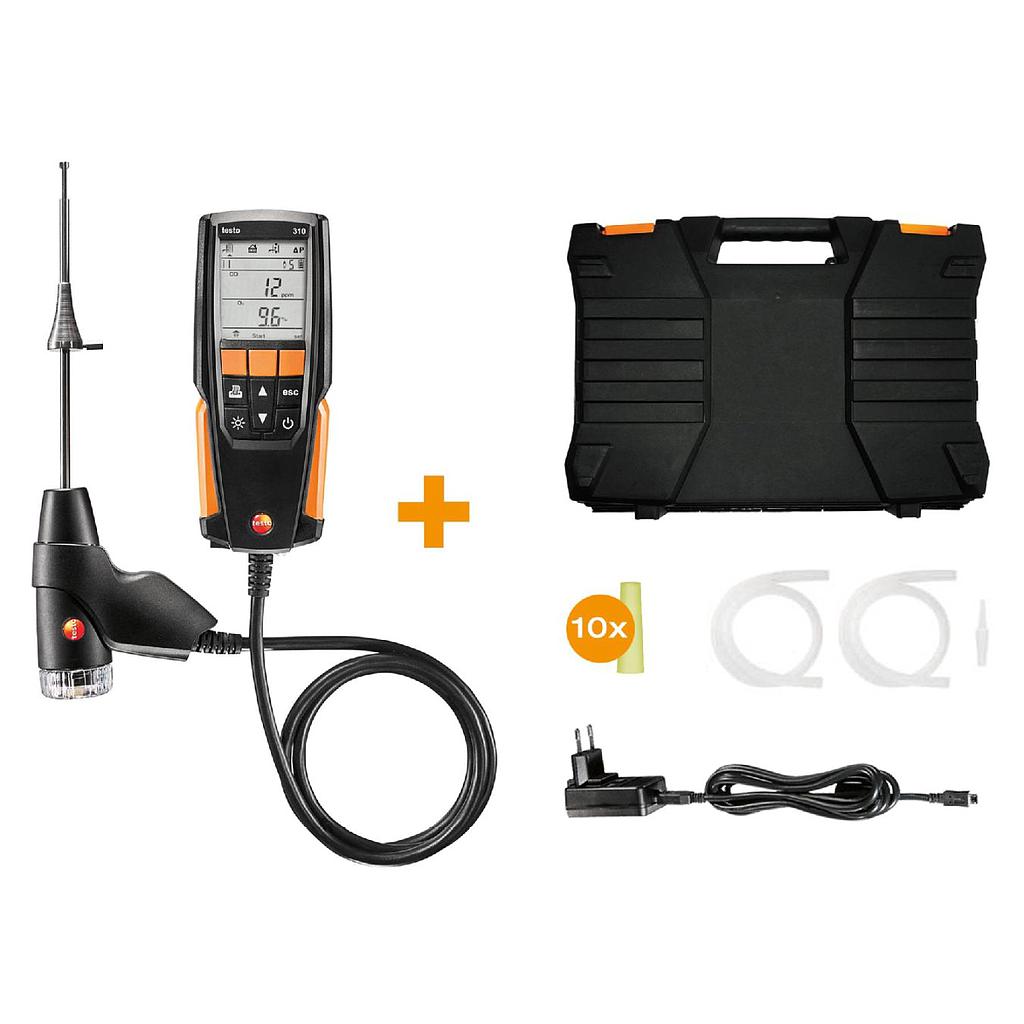

TESTO 310 烟气分析仪

- Flue gas O₂

Measuring range: 0 to 21 Vol.%

Accuracy: ±0.2 Vol.%

Resolution: 0.1 Vol.%

Reaction time t₉₀: 30 s

- Flue gas loss (calculated)

Measuring range: 0 to 99.9 %

Resolution: 0.1 %

- Flue gas CO₂ calculation (calculated from O₂)

Measuring range: 0 to CO₂ max (Display range)

Accuracy: ±0.2 Vol.%

Resolution: 0.1 Vol.%

Reaction time t₉₀: < 40 s

- Pressure measurement

Measuring range: -40 to +40 hPa

Accuracy: ±0.5 hPa

Resolution: 0.1 hPa

Flue gas CO (without H₂-compensation)

Measuring range: 0 to 4000 ppm

Accuracy

±20 ppm (0 to 400 ppm)

±5 % of mv (401 to 2000 ppm)

±10 % of mv (2001 to 4000 ppm)

Resolution: 1 ppm

Reaction time t₉₀: 60 s

- Ambient CO

Measuring range: 0 to 4000 ppm

Accuracy

±20 ppm (0 to 400 ppm)

±5 % of mv (401 to 2000 ppm)

±10 % of mv (2001 to 4000 ppm)

Resolution: 1 ppm

Reaction time: 60 s

- General technical data

Dimensions: 201 x 83 x 44 mm

Operating temperature: -5 to +45 °C

Display type: LCD

Display function: Backlit 2-line display

Power supply: Battery: 1500 mAh, mains unit 5V/1A

Storage temperature: -20 to +50 °C

Weight: (with probe) Approx. 700 g
