Texio LSA-330 直流电子负载（1-150V，0-66A，330W）

LSA-330 (1-150V, 0-66A, 330W)

Specification

●Compact size which is 1/3-rack-size for 165W model and 330W model. Reduce the bulk ratio to 60% of that of the conventional company products.

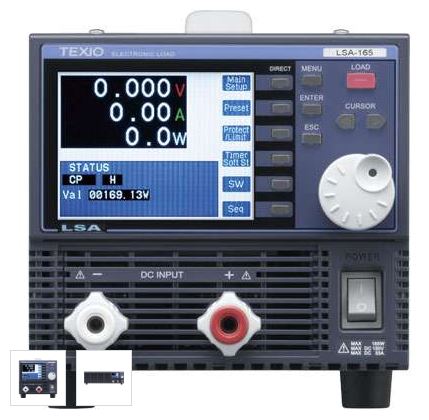

●Full-color 3.5 inch LCD provides high operability and visibility.

●10μA minimum resolution for current setting (LSA-165 L range).

●CC/CR/CP/CC+CV/CR+CV mode are selectable.

●High-speed response for 10μsec. Switching function is available (CC, CR, CP mode).

●External voltage / resistance control function is available.

●Maximum 5-unit-parallel master-slave operation is available.

●Sequence control provides branch on condition.

●Option: GP-IB, USB and RS-232C are in one slot-in option board IF-80GUR.Recommend to use GP-IB or RS-232C if you use LSA series at noisy condition.
