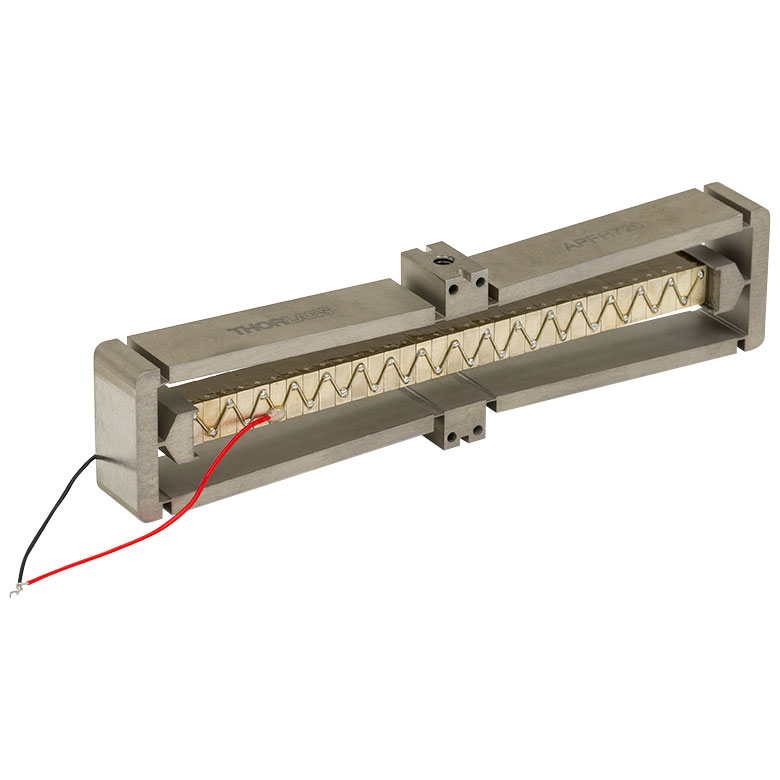

THORLABS APF710 放大压电致动器 (150 V, 1500 µm Max)

Drive Voltage Range (Max): -30 to 150 V

Mounting Options: Tapped Holes on Top, Bottom, Front, and Back

Displacement (Free Stroke): 1500 µm

Outer Dimensions(b): 18.0 x 10.0 x 100.0 mm (0.71" x 0.39" x 3.94")

Max Pulling Force: 55 N(d)

Max Pushing Force: 20 N(e)

Resonant Frequency (c): 185 Hz

Capacitance: 16µF

(b) Not Including Wires

(c) 5 g, On-Axis Load

(d) When Increasing Voltage

(e)When Decreasing Voltage
