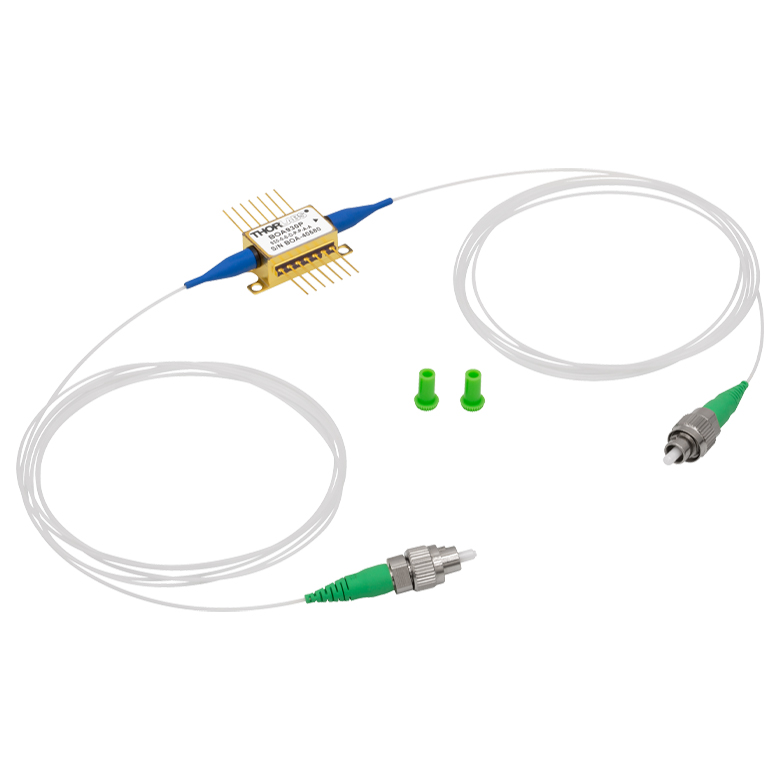

THORLABS BOA1250P 增压光放大器 (1250 nm)

Operating Wavelength: 1250 nm

ASE Center Wavelength: 1250 nm(b)

Operating Current (Max): 700 mA

3 dB Bandwidth: 78 nm

Saturation Output Power (@ -3 dB)(c,d): 17 dBm

Small Signal Gain (@ Pin = -20 dBm)(c,d): 32 dB

Noise Figure(c,d): 7 dB

Fiber Type: PM980-XP

(a) All specifications are typical unless otherwise noted.

(b) The typical center ASE wavelength is not necessarily the operating wavelength. An operating wavelength of 1250 nm was selected for testing to yield the specified saturated output power of 17 dBm.

(c) Measured at 1250 nm.

(d) Measured at the Operating Current

DATA SHEET:
