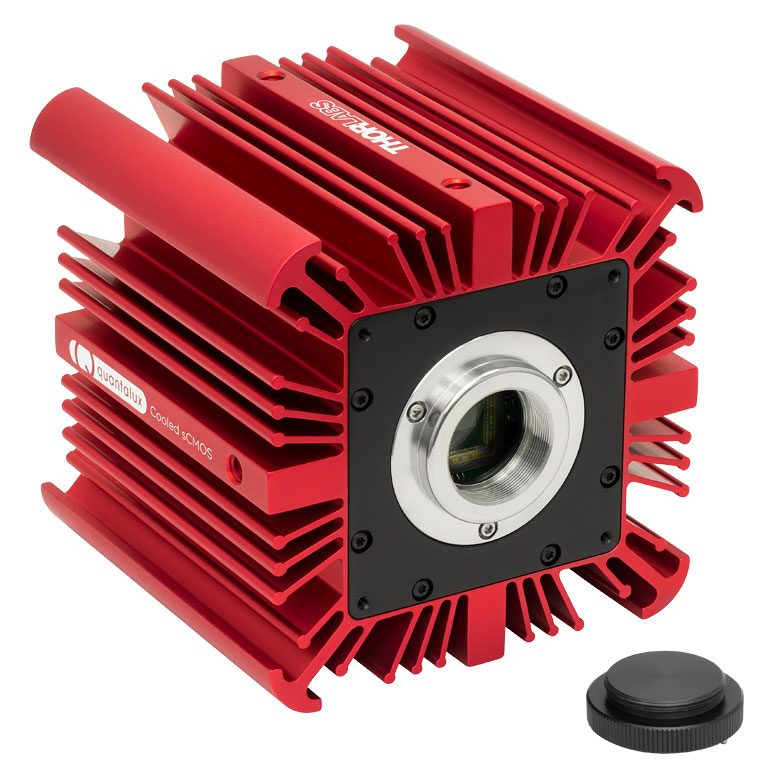

THORLABS CC215MU 2.1 MP sCMOS 科学相机 (0.079" (2.0 mm), 密封、冷却 )

Max Filter Thickness When Using C-Mount Adapter: 0.079" (2.0 mm)

Mounting Features:

- Six 1/4"-20 Holes, Two Each on Top & Bottom, One on Each Side

- Four 4-40 Holes for 60 mm Cage Compatibility

Housing Dimmensions: 4.29" x 4.13" x 4.12" (109.0 mm x 104.8 mm x 104.8 mm)

Cooling: Active Thermoelectric Cooling.  Sensor Cools to 0 °C at 20 °C Ambient Temperature

Cooling Mode Power Consumption: 12.6 W (Max)

Power Supply: Camera Powered by USB 3.0 from Host PC. Auxillary Power Supply for TE-Cooling (100 - 240 VAC @ 50 - 60 Hz)

Common Specifications

Sensor Type: Monochrome sCMOS

Effective Number of Pixels (Horizontal x Vertical): 1920 x 1080

Imaging Area (Horizontal x Vertical): 9.6768 mm x 5.4432 mm

Pixel Size: 5.04 µm x 5.04 µm

Optical Format: 2/3" (11 mm Diagonal)

Max Frame Rate: 50 fps (Full Sensor)

Sensor Shutter Type: Rolling

Peak Quantum Efficiency: 61% at 600 nm

Removable Window AR-Coating Reflectance: Ravg < 0.5% over 400 - 700 nm (Per Surface)

Exposure Time: 0.029 ms to 7767.2 ms in ~0.03 ms Increments

ADC(a) Resolution: 16 Bit

Vertical and Horizontal Digital Binning: Continuous Integer Values from 1 to 16

Region of Interest (ROI): 8 x 2 Pixelsb to 1920 x 1080 Pixels, Rectangular

Read Noise: <1 e- Median RMSc / <1.5 e- RMS

Digital Output: 16 Bit

Dynamic Range: Up to 87 dB

Full Well: ≥23 000 e-

Lens Mount: C-Mount (1.000"-32)

USB Power Consumption (Camera Only): 3.7 W @ 30 fps (Full Sensor ROI). 4.3 W @ 50 fps (Full Sensor ROI)

Operating Temperature: 10°C to 40°C (Non-Condensing)

Storage Temperature: 0°C to 55°C

(a) ADC = Analog-to-Digital Converter

(b) When Binning at 1 x 1

(c) As Specified by the Sensor Manufacturer
