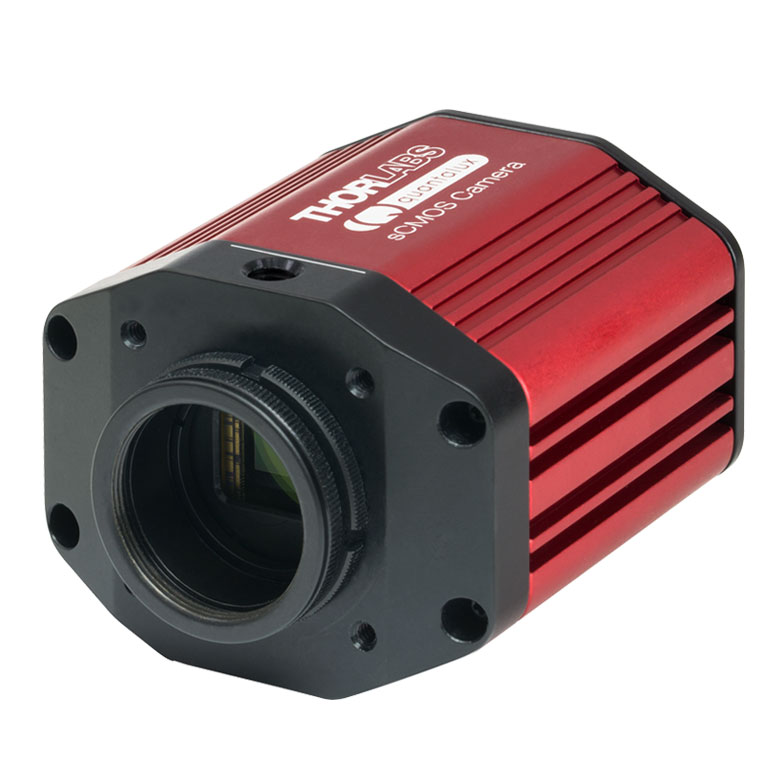

THORLABS CS2100M-USB 2.1 MP sCMOS 科学相机 (0.050" (1.270 mm), 被动冷却)

Max Filter Thickness When Using C-Mount Adapter: 0.050" (1.270 mm)

Mounting Features:

- Two 1/4"-20 Holes, One on Top & Bottom

- Four 4-40 Holes for 30 mm Cage Compatibility

- SM1 (1.035"-40) Threaded Aperture When C-Mount Adapter is Removed

Housing Dimmensions: 2.77" x 2.38" x 1.88" (70.4 mm x 60.3 mm x 47.6 mm)

Cooling: Passive Cooling

Cooling Mode Power Consumption: N/A

Power Supply: Powered by USB 3.0 from Host PC

Common Specifications

Sensor Type: Monochrome sCMOS

Effective Number of Pixels (Horizontal x Vertical): 1920 x 1080

Imaging Area (Horizontal x Vertical): 9.6768 mm x 5.4432 mm

Pixel Size: 5.04 µm x 5.04 µm

Optical Format: 2/3" (11 mm Diagonal)

Max Frame Rate: 50 fps (Full Sensor)

Sensor Shutter Type: Rolling

Peak Quantum Efficiency: 61% at 600 nm

Removable Window AR-Coating Reflectance: Ravg < 0.5% over 400 - 700 nm (Per Surface)

Exposure Time: 0.029 ms to 7767.2 ms in ~0.03 ms Increments

ADC(a) Resolution: 16 Bit

Vertical and Horizontal Digital Binning: Continuous Integer Values from 1 to 16

Region of Interest (ROI): 8 x 2 Pixelsb to 1920 x 1080 Pixels, Rectangular

Read Noise: <1 e- Median RMSc / <1.5 e- RMS

Digital Output: 16 Bit

Dynamic Range: Up to 87 dB

Full Well: ≥23 000 e-

Lens Mount: C-Mount (1.000"-32)

USB Power Consumption (Camera Only): 3.7 W @ 30 fps (Full Sensor ROI). 4.3 W @ 50 fps (Full Sensor ROI)

Operating Temperature: 10°C to 40°C (Non-Condensing)

Storage Temperature: 0°C to 55°C

(a) ADC = Analog-to-Digital Converter

(b) When Binning at 1 x 1

(c) As Specified by the Sensor Manufacturer
