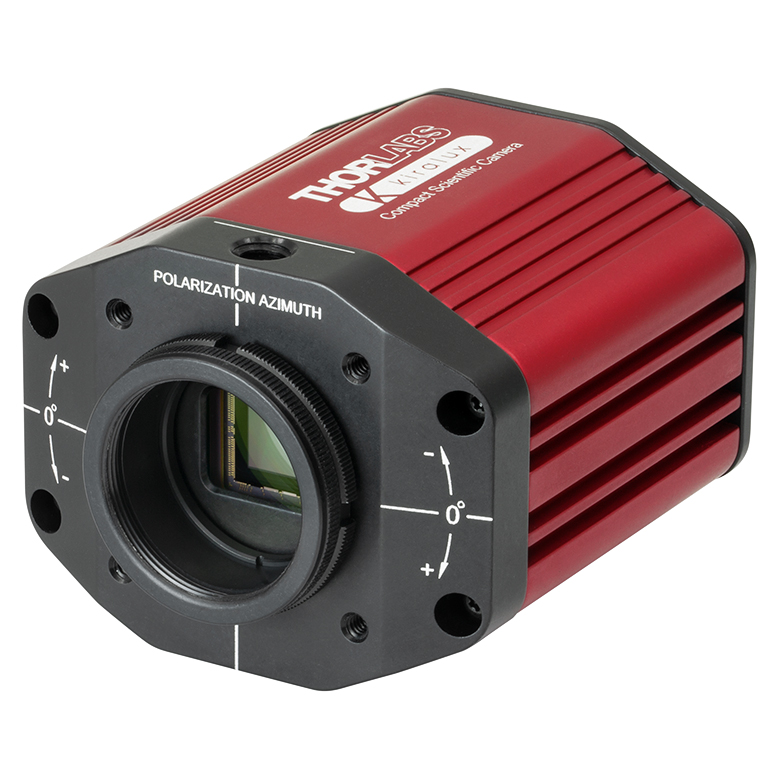

THORLABS CS505MUP1 带5.0 MP单色CMOS传感器的偏振相机

Sensor Type: Monochrome CMOS with Wire Grid Polarizer Array(a)

Effective Number of Pixels (Horizontal x Vertical): 2448 x 2048

Imaging Area (Horizontal x Vertical): 8.4456 mm x 7.0656 mm

Pixel Size: 3.45 µm x 3.45 µm

Optical Format: 2/3" (11 mm Diagonal)

Max Frame Rate: 35 fps (Full Sensor)

ADC(b) Resolution: 12 Bits

Sensor Shutter Type: Global

Peak Quantum Efficiency: 72% from 525 to 580 nm (Typical)

Read Noise: <2.5 e- RMS(c)

Full Well Capacity: ≥10 000 e-

Exposure Time: 0.027 ms to 14235 ms in ~0.013 ms Increments

Vertical and Horizontal Digital Binning: 1 x 1 to 16 x 16

Region of Interest (ROI): 260 x 4 Pixels(d) to 2448 x 2048 Pixels, Rectangular

Dynamic Range: Up to 71 dB

Lens Mount: C-Mount (1.000"-32)

Mounting Features: Two 1/4"-20 Taps for Post Mounting 30 mm Cage Compatible

Removable Optic: Window, Ravg < 0.5% per Surface (400 - 700 nm)

USB Power Consumption: 3.6 W @ 35 fps (Full Sensor ROI)

Ambient Operating Temperature: 10°C to 40°C (Non-Condensing)

Storage Temperature: 0 °C to 55 °C

(a) The wire grid polarizer array is comprised of a repeating pattern of polarizers (0°, 45°, -45°, and 90° transmission axes) and is present on the sensor chip between the microlens array and the photodiodes. Please see the lower right diagram for more information.

(b) ADC = Analog-to-Digital Converter

(c) For Unprocessed Images

(d) When Binning at 1 x 1
