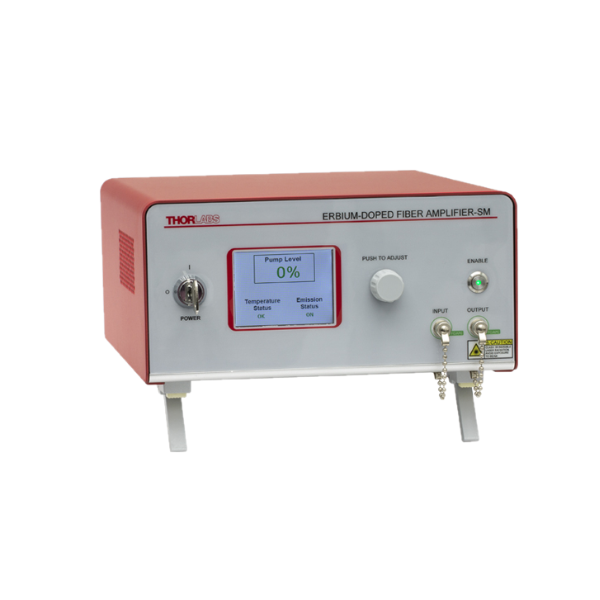

THORLABS EDFA300P C-Band Erbium-Doped 光纤放大器

Operating Wavelength Range: 1530 nm - 1565 nm

Saturated Output Power: >24.5 dBm

Small Signal Gain (@ -20 dBm Input Power) :>40 dB

Noise Figure (@ 3 dBm Input Power): <6 dB

Output Power Stability (Constant Current Model @ 3 dBm Input Power): <±2% Over 24 Hours

Output Power Stability (Constant Power Model @ 3 dBm Input Power): <±0.5% Over 24 Hours

Total Dispersion within Amplifier: <0.14 ps/nm

Laser Class: 3B

Output Polarization: Linear, Aligned to Slow Axis

Input / Output Isolation: >30 dB

Input / Output Fiber Type: PM1550-XP
