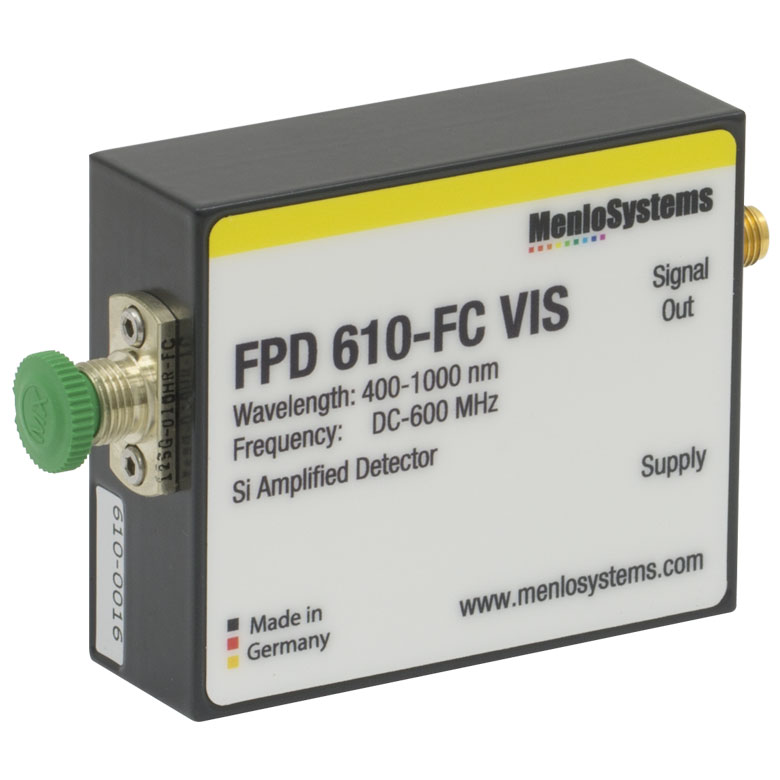

THORLABS FPD610-FC-VIS 硅光纤耦合放大光电探测器 (400-1000 nm)
制造商: THORLABS Model: FPD610-FC-VIS - 报价要求
- 联系
Optical Input: FC/PC connector
Spectral Range: 400 - 1000 nm
Saturation Limit: <100 µW
Damage Threshold: 3 mW
Detector Diameter: 0.25 mm
Frequency Range: DC - 600 MHz
3 dB Bandwidth: DC - 500 MHz
Rise Time: 1 ns
Gain (fs Pulsed Input)(a): 2 x 10^6 Vpp/W
Gain (CW Input)(a): 2.5 x 10^5 Vpp/W
Dark State Noise Level: -80 dBm/Hz^1/2 (up to 5 MHz) -100 dBm/Hz^1/2 (5 to 600 MHz)
NEP (calculated): 11.9 pW/Hz^1/2
Output Impedance: 50 Ω
Output Coupling: DC
Output Signal: 0 to 1 V
Supply Voltage / Max. Current Consumption: +5 VDC / <250 mA -12 VDC / <50 mA
Output Connector: SMA female
Operating Temperature: 10 to 40°C
Storage Temperature: -20 to +85°C
Storage Humidity (RH): 10% to 90%
Device Dimensions: 60 mm x 50 mm x 20 mm (2.4" x 2.0" x 0.79")
(a) These detectors are optimized for femtosecond pulses within the specified frequency range. Gain will be approximately a factor of 10 lower for CW operation.
