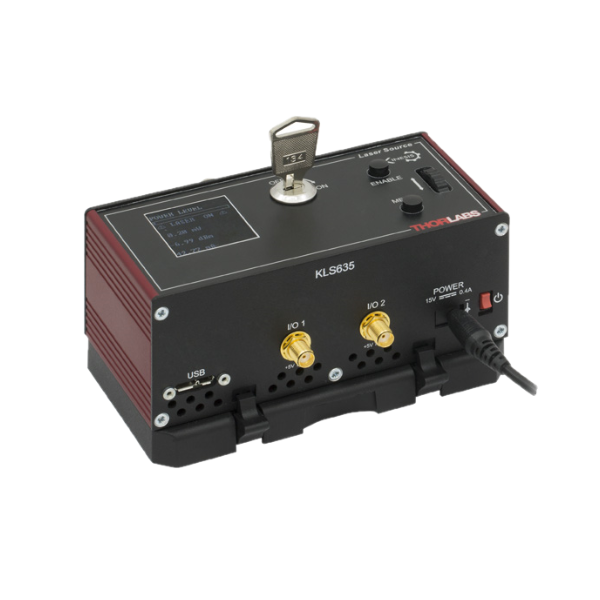

THORLABS KLS635 K-Cube激光光源 (8.0 mW)

Wavelength: 635 nm or 1550 nm

Maximum Full Output Power: 8.0 mW

Stability: ±0.1 dB

Display Accuracy: ±10%

Set Point Resolution: 0.01 mW

Operating Temperature: 15°C to 35°C

Storage Temperature: 0°C to 50°C

Modulation Input: 0 to 10V = 0 to Full Power

Modulation Bandwidth Sine Wave: 600 Hz at 3 dB

                                                        1kHz at 6 dB

EXT IN Input Impedance: 16kΩ

Power Input: 15 V

(W x D x H): 121 x 60 x 47 mm (4.8" x 2.4" x 1.8")

USB Connector Type: USB 3.0

USB Connection Speed: USB 1.1  Full Speed (12 Mbps)

Weight: 350 g ( 12.35 oz)
