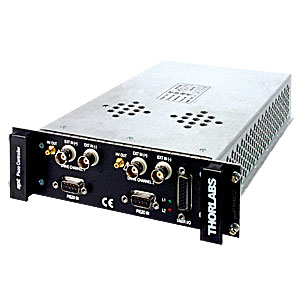

THORLABS MPZ601 APT压电控制模块

Piezoelectric Output (SMC Male) - Per Channel

Voltage (Software Control): 0 to 75 V DC

Voltage (External Input): -10 to 90 VDC

Current: 500 mA Max Continuous

Stability: 100 ppm Over 24 hours (After 30 mins Warm-Up Time)

Noise: <3 mV RMS

Typical Piezo Capacitance: 1 to 10 µF

Bandwidth: 10 kHz (1 µF Load, 1 Vp-p)

Position Feedback (9-Pin D-type Female) - Per Channel

Feedback Type: AC Bridge or 0-10 V Differential DC (SW Selectable)

AC Feedback Transducer Type: Strain Gauge

AC Detection Method: AC Bridge (18 kHz Excitation)

Typical AC Feedback Resolution: 5 nm (for 20 µm Actuator e.g. PAZ005)

Auto-Configure: Identification Resistance in Actuator

User Input/Output (26-Pin D-type Female)

Potentiometer Input (per channel): Reference + Wiper (50 kΩ 10 Turn Pots)

HV Output Monitor (per channel): 0 to 10 VDC

4 Digital Inputs: TTL Levels

4 Digital Outputs: Open Collector

Trigger Input/Output: TTL

Trigger Input Functionality: Triggered Voltage Ramps/Waveforms

Trigger Output Functionality: Trigger Generation During Voltage Ramp Output

User 5 V (with Ground) 250 mA Max

General

Housing: Single apt™ Rack System Bay

Dimensions (W x D x H): 190 x 270 x 50 mm (7.5" x 10.6" x 2")

Weight: 1.5 kg (3.3 lbs)

Details

MANUAL:
