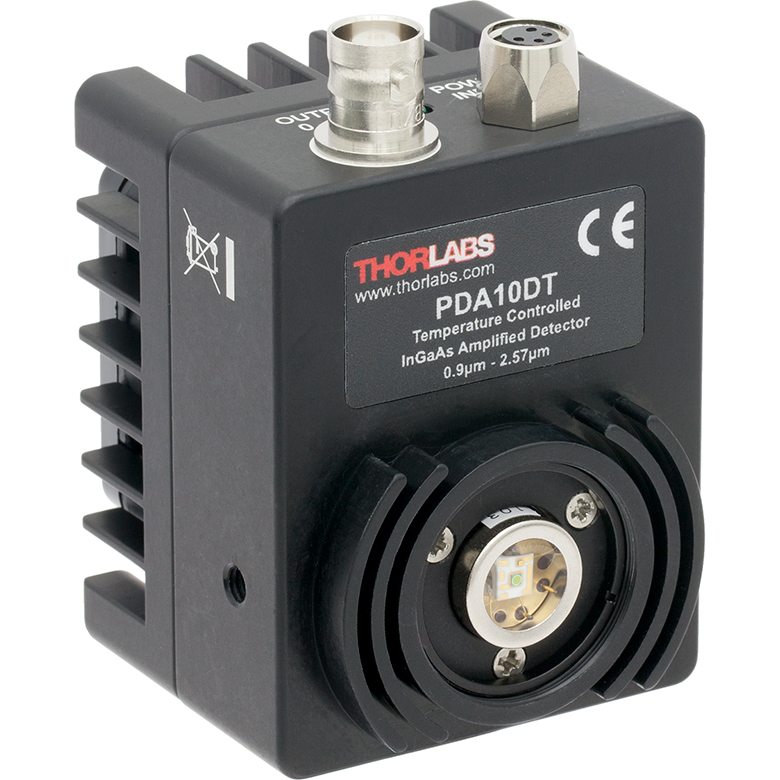

THORLABS PDA10DT 带热电冷却器的InGaAs放大光电探测器 (0.9 - 2.57 µm)
制造商: THORLABS Model: PDA10DT - 联系
Wavelength Range (λP): 0.9 - 2.57 µm
Peak Wavelength: 2.3 µm
Peak Responsivity: 1.3 A/W (Typ.) at Peak Wavelength
Active Area: 0.8 mm2 (Ø1.0 mm)
Window Material: Borosilicate Glass
Gain Settings: 8 Steps: 0, 10, 20, 30, 40, 50, 60, or 70 dB
Bandwidth Settings: 8 Steps from 500 Hz to 1 MHz
Noise-Equivalent Power (NEP): 2.11 pW/Hz1/2 @ DC - 2.5 kHz (for 70 dB Gain and 1 MHz Bandwidth)
More detailed specifications are available in the Manual.
