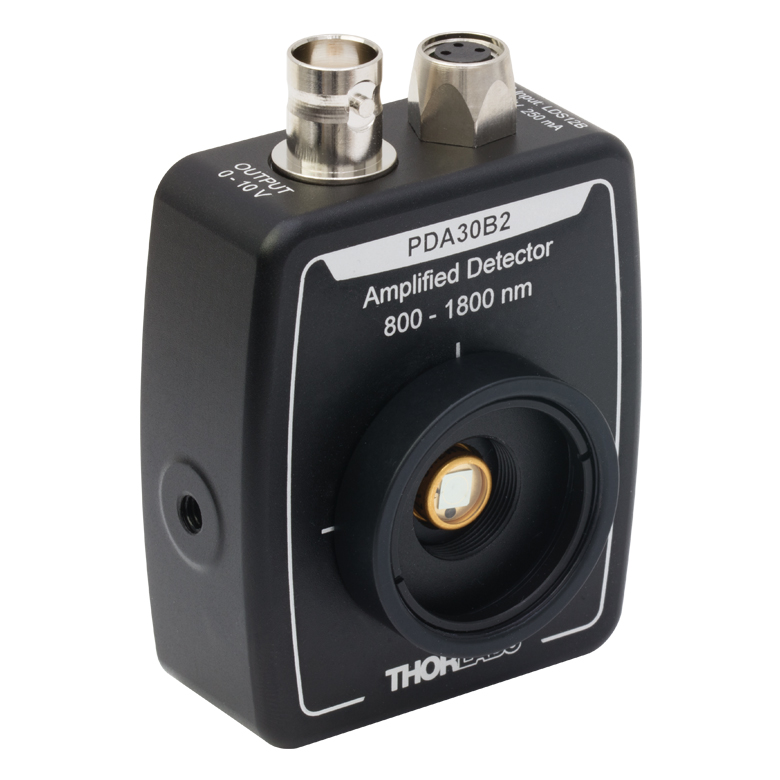

THORLABS PDA30B2 锗放大光电探测器 (800-1800 nm; 7.1 mm^2)

Wavelength Range : 800 - 1800 nm

Bandwidth Range: DC - 590 kHz

NEP(c): 5.93 x 10^-12 to 1.44 x 10^-10 W/Hz^1/2

Active Area(d,e): 7.1 mm^2 (Ø3.0 mm)

Operating Temperature Range: 10 to 40 °C

Power Supply Included: Yes

(c) A noise equivalent power (NEP) range is given for these switchable gain detectors. For specific gain specifications, please see manual.

(d) Click on the links to view an image of the detector element.

(e) The detector active area surface is flush with the front the housing
