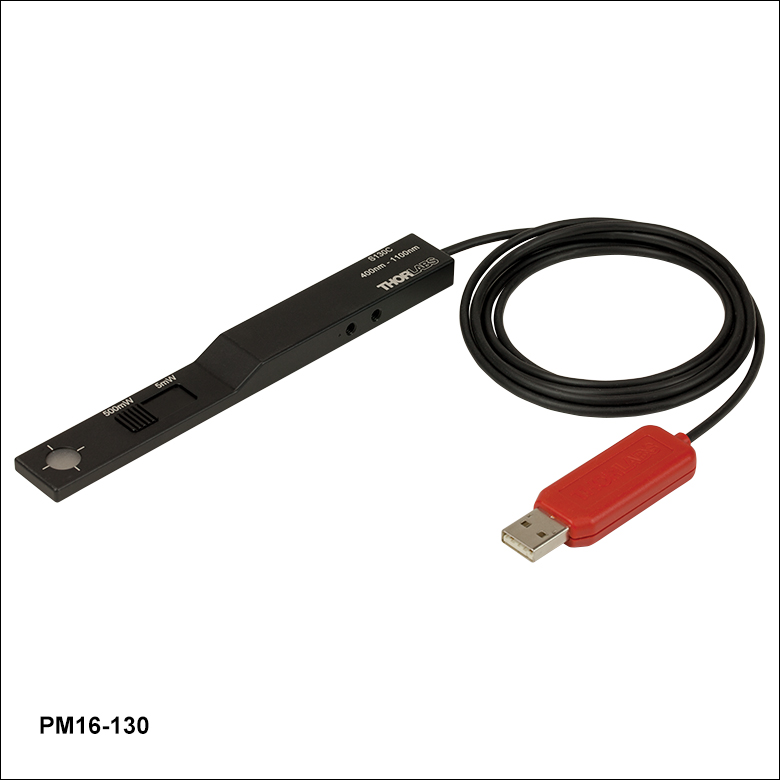

THORLABS PM16-130 带超薄光电二极管传感器的紧凑型USB功率表 (400-1100 nm)
制造商: THORLABS Model: PM16-130 - 报价要求
- 联系
Detector Type: Silicon Photodiode
Wavelength Range: 400 - 1100 nm
Optical Power Range (with Filter): 500 pW - 5 mW (Up to 500 mW)
Aperture Size: Ø9.5 mm
Resolution: <100 pW (10 nW with Filter)
ND Filter: Reflective ND (OD2)
Housing Dimensions: 150.0 mm x 19.0 mm x 10.0 mm (5.91" x 0.75" x 0.39") 5 mm Thickness on Sensor Side
Post Mounting: 8-32 and M4 Taps
For complete power meter specifications, see the manual
