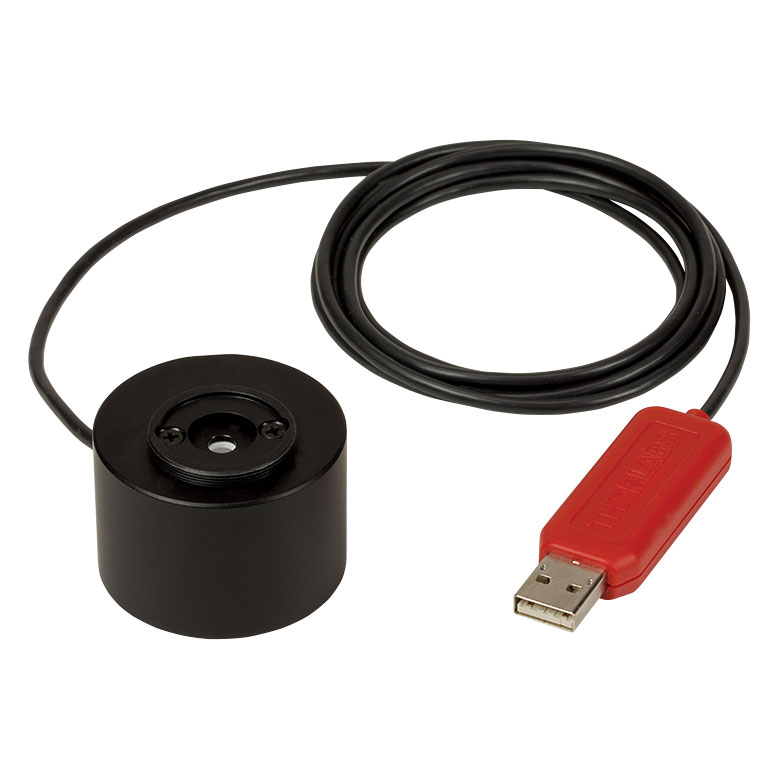

THORLABS PM16-140 带球形传感器的紧凑型USB功率表 (350-1100 nm)

Detector Type: Integrating Sphere (Silicon Photodiode)

Wavelength Range: 350 - 1100 nm

Optical Power Range: 1 µW - 500 mW

Aperture Size: Ø5 mm

Resolution: <1 nW

Integrating Sphere Material / Diameter: Zenith PTFE Integrating Sphere / Ø1"

Sensor Housing Dimensions: Ø45 mm x 30.5 mm (1.77" x 1.20")

Post Mounting: 8-32 and M4 Taps

Included Fiber Adapter: S120-FC for FC/PC and FC/APC Connectors

For complete power meter specifications, see the manual
