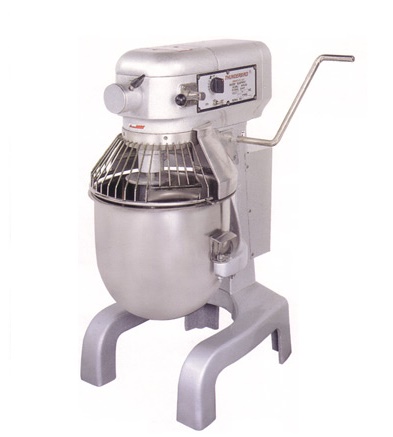

Thunderbird ARM-02 (20pt) 20升多功能搅拌机 (3 / 4HP; 14 amps)

Features

• 20-quart capacity

• 1-15minute timer for continuous or timed operation

• Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.

• Motor cooling system.

• Moisture resistant switches

• Motor thermal protector.

• Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning

Specifications

Motor:

3-speed

3/4HP continuous

14 amps

Electrical:

115/60/1

220v/60/1 and 220v/50/1 available

Speed Range:

Beater: 46-155

Hub: 106-357

Weight:

Net: 225lbs (102kg)

Ship: 249lbs (113kg)

Dimensions:

Width: 15'' (380mm)

Depth: 22'' (560mm)

Height: 32'' (815mm)

Shipping:

Width: 22'' (560mm)

Depth: 22'' (560mm)

Height: 38'' (965mm)

Datasheet
