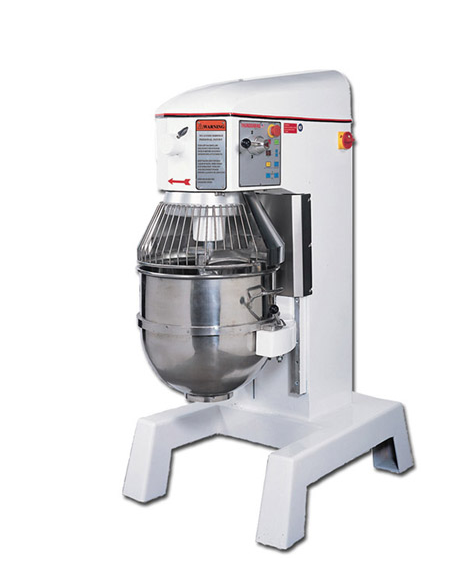

Thunderbird ARM-60 (60pt) 行星搅拌机 (4 HP; 50 amps)

Features

60-quart capacity

1-99minute timer for continuous or timed operation

Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.

Motor cooling system.

Moisture resistant switches

Motor thermal protector.

Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning


Specifications


Motor:

6-speed (3 speed gear box with 2 speed motor)

4Hp continuous

50 amps

Electrical:

220/60/3 or 220/60/1

440v/60/3 or 440v/50/3

Speed Range:

Beater: 18-100

Hub: 38-228

Weight:

Net: 1018lbs (462kg)

Ship: 1180lbs (536kg)

Dimensions:

Width: 32'' (813mm)

Depth: 43.8'' (1113mm)

Height: 61.8'' (1569mm)

Shipping:

Width: 33.8'' (858mm)

Depth: 47'' (1193mm)

Height: 71.8'' (1828mm)

Details

Datasheet
