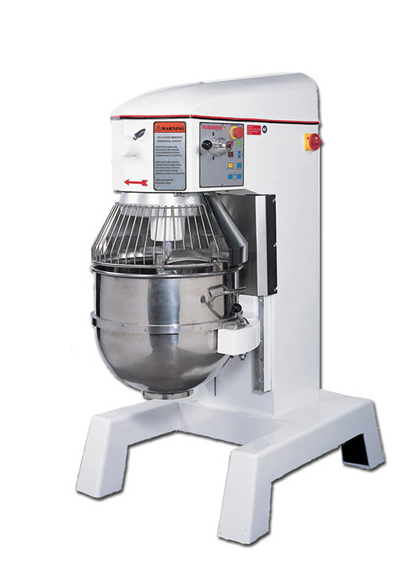

Thunderbird ARM-80 (80pt) 多功能搅拌机 (5 HP; 60 amps)

Features

• 80-quart capacity

• 1-99minute timer for continuous or timed operation

• Transmission: Wide-faced, hardened alloy steel, helical gears fully sealed in transmission lubricant with heavy-duty ball bearings and clutch combine for highly dependable, quiet operation.

• Motor cooling system.

• Moisture resistant switches

• Motor thermal protector.

• Cast base construction. Silver metallic finish using epoxy powder coat enamel for easy cleaning

Specifications

Motor:

6-Speed (3 speed gear box with two speed motor)

5Hp continuous

60 amps

Electrical:

220/60/3

440v/60/3 and 440v/50/3 available

Speed Range:

Beater: 18-100

Hub: 38-228

Weight:

Net: 1025lbs (466kg)

Ship: 1200lbs (538kg)

Dimensions:

Width: 32'' (813mm)

Depth: 43.8'' (1113mm)

Height: 66'' (1676mm)

Shipping:

Width: 33.8'' (858mm)

Depth: 47'' (1193mm)

Height: 71.8'' (1828mm)

Datasheet
