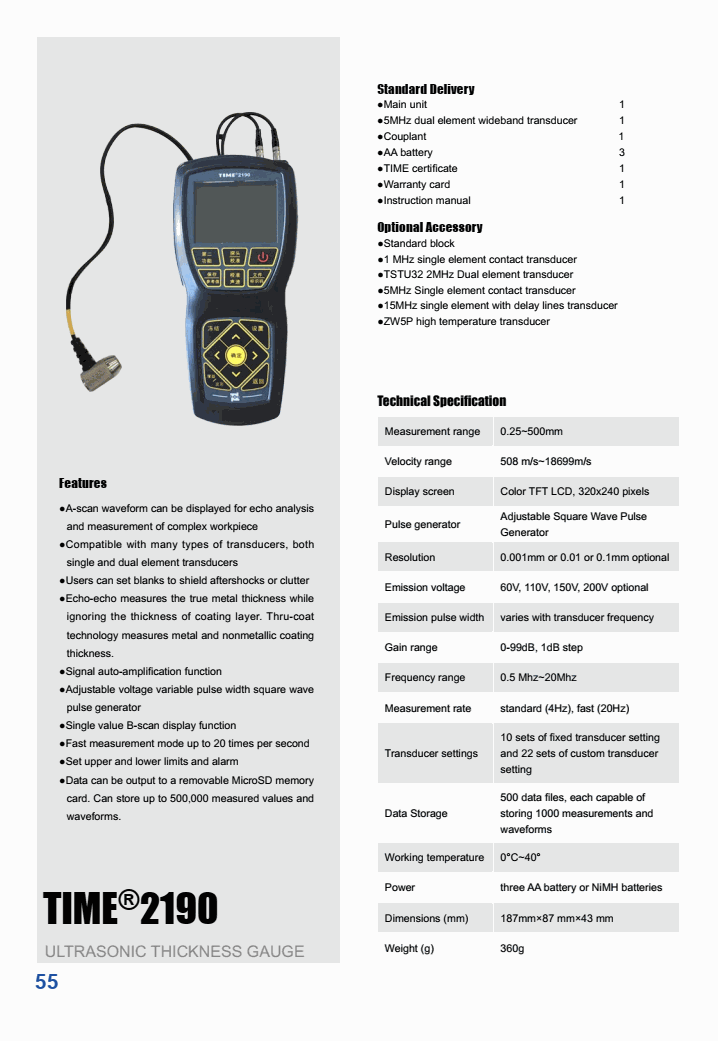

TIME 2190 超声波测厚仪 (0.25~500mm)

Specifications:

Measurement range: 0.25~500mm

Velocity range: 508 m/s~18699m/s

Display screen: Color TFT LCD, 320x240 pixels

Pulse generator: Adjustable Square Wave Pulse Generator

Resolution: 0.001mm or 0.01 or 0.1mm optional

Emission voltage: 60V, 110V, 150V, 200V optional

Emission pulse width: varies with transducer frequency

Gain range: 0-99dB, 1dB step

Frequency range: 0.5 Mhz~20Mhz

Measurement rate: standard (4Hz), fast (20Hz)

Transducer settings: 10 sets of fixed transducer setting and 22 sets of custom transducer setting

Data Storage: 500 data files, each capable of storing 1000 measurements and waveforms

Working temperature: 0°C~40°

Power: three AA battery or niMH batteries

Dimensions (mm): 187mm×87 mm×43 mm

Weight (g): 360g

Standard Delivery

  • Main unit
  •  5MHz dual element wideband transducer
  •  Couplant
  •  3x AA battery
  •  TIME certificate
  •  Warranty card
  •  Instruction manual



Optional Accessory

  •  Standard block
  •  1 MHz single element contact transducer
  •  TSTU32 2MHz Dual element transducer
  •  5MHz Single element contact transducer
  •  15MHz single element with delay lines transducer
  •  ZW5P high temperature transducer
