TIME 2430 超声波测厚仪 (0.6mm-508mm)

  • 制造商: TIME
    Model: 2430
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267

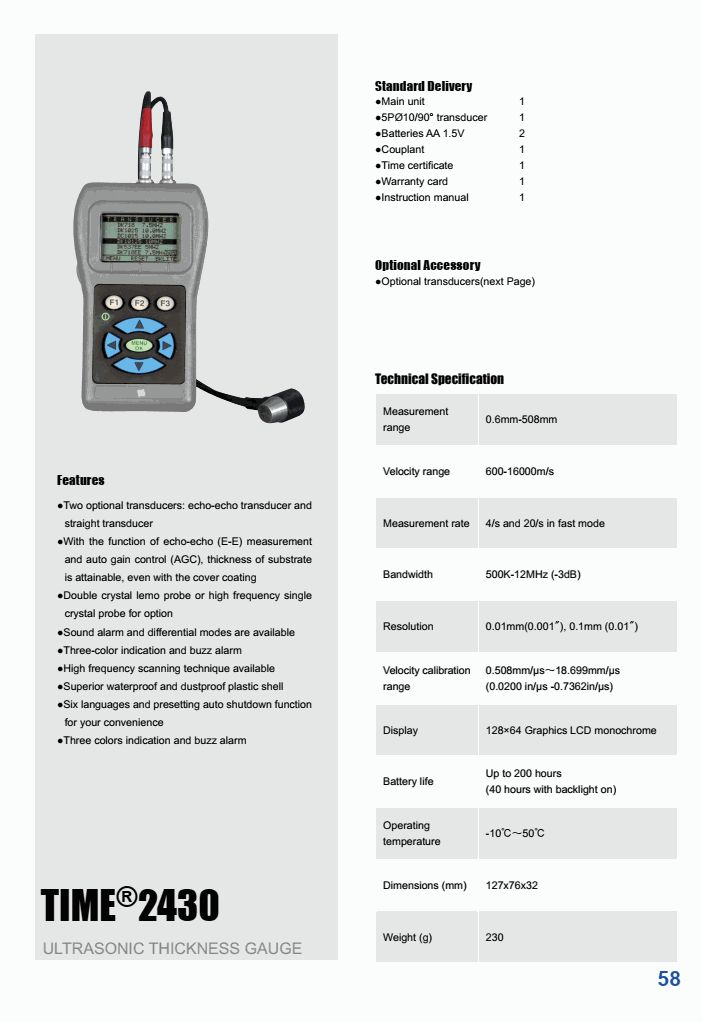

Specifications:

Measurement range: 0.6mm-508mm

Velocity range: 600-16000m/s

Measurement rate: 4/s and 20/s in fast mode

Bandwidth: 500K-12MHz (-3dB)

Resolution: 0.01mm(0.001"), 0.1mm (0.01")

Velocity calibration range: 0.508mm/μs~18.699mm/μs (0.0200 in/μs -0.7362in/μs)

Display: 128×64 Graphics LCD monochrome

Battery life: Up to 200 hours (40 hours with backlight on)

Operating temperature: -10℃~50℃

Dimensions (mm): 127x76x32

Weight (g): 230

Standard Delivery

Main unit

5PØ10/90° transducer

Batteries AA 1.5V

Couplant

TIME certificate

Warranty card

Instruction manual

Optional Accessory

Optional transducers

Details

Datasheet


Catalog 2019
