TIME 2500 磁性覆层测厚仪 (0 ~ 1250μm; 0,1μm)

  • 制造商: TIME
    Model: 2500
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267

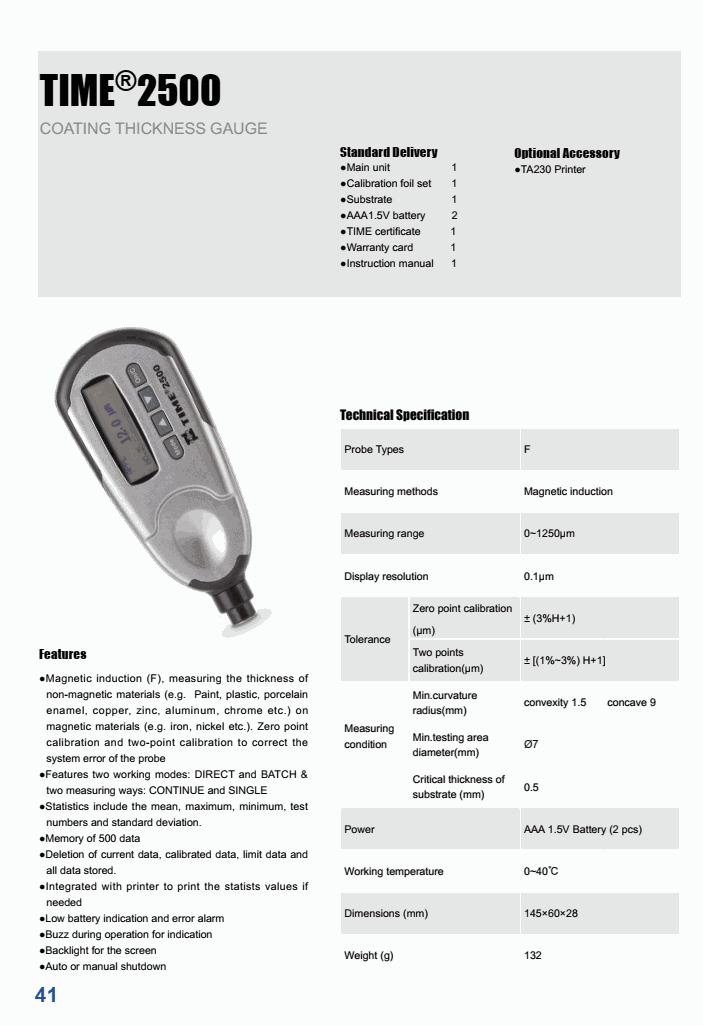

Specifications:

Probe Types: F

Measuring methods: Magnetic induction

Measuring range: 0~1250μm

Display resolution: 0.1μm

Tolerance

Zero point calibration (μm): ± (3%H+1)

Two points calibration(μm): ± [(1%~3%) H+1]

Measuring condition

Min. curvature radius(mm): convexity 1.5 concave 9

Min. testing area diameter(mm): Ø7

Critical thickness of substrate (mm): 0.5

Power: AAA 1.5V Battery (2 pcs)

Working temperature: 0~40℃

Dimensions (mm): 145×60×28

Weight (g): 132

Standard Delivery

Main unit

Calibration foil set

Substrate

2 x AAA1.5V battery

TIME certificate

Warranty card

Optional Accessory

TA230 Printer

Details

Datasheet


Catalog 2019
