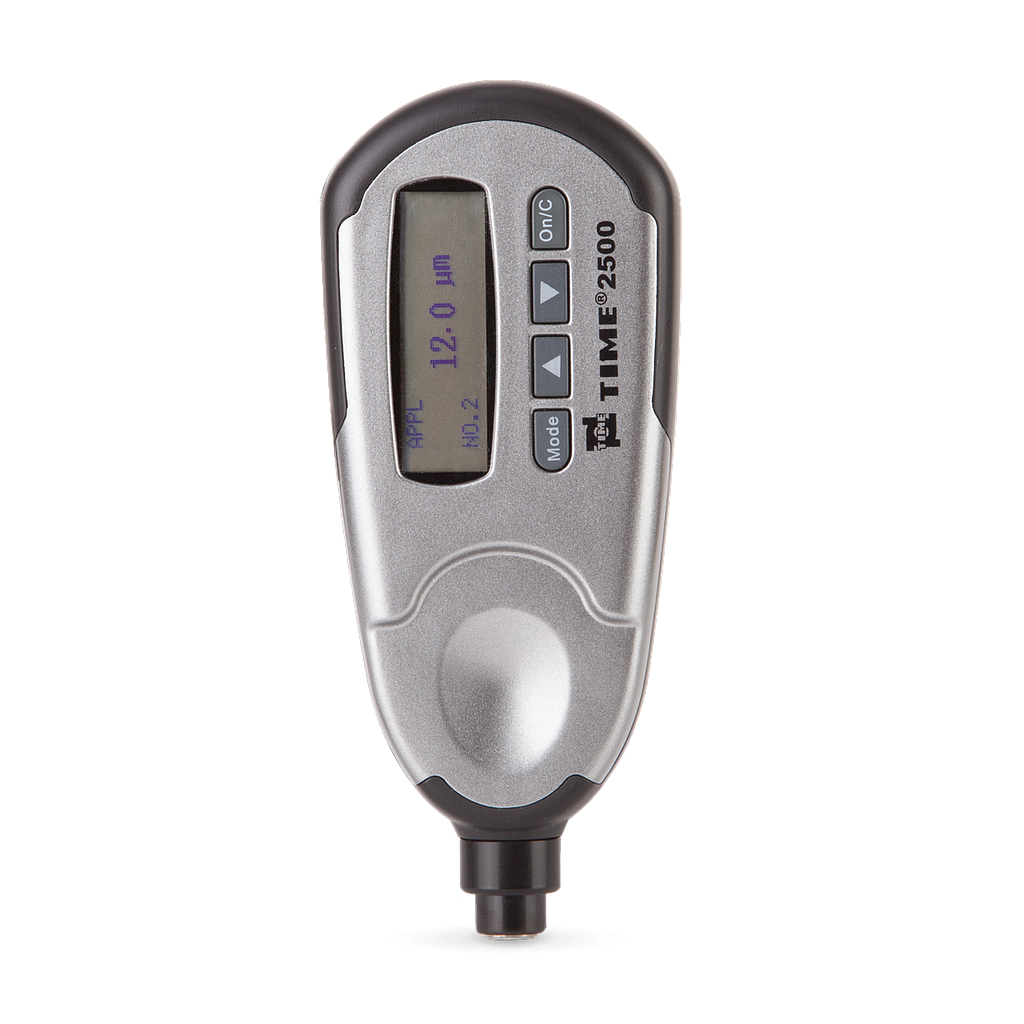

TIME 2501 磁性覆层测厚仪 (0~1250 μm; 0.1μm)

Specifications:

Working principle: Eddy current

Measuring range: 0 to 1250 μm

Minimum resolution: 0.1μm

Zero point calibration: ± (3%H + 1.5)

Two-point calibration: ± [(1%-3%)H + 1.5]

Min.curvature radius of the object to be measured(mm): convexity 3 concave 10

Min. testing area diameter (mm): Ø5

Critical thickness of substrate (mm): 0.3

Operating environment

Working temperature: 0~40℃

Humidity: 20%~90%

Magnetic field: no strong magnetic field

Power: source AAA 1.5V Battery (2 pcs)

Dimensions (mm): 145×60×28

Weight (g): 132
