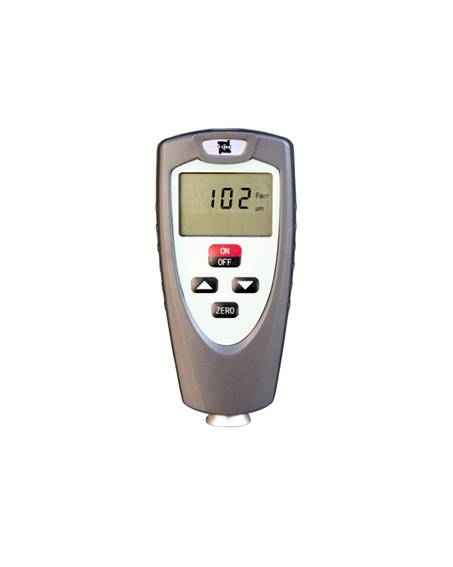

TIME 2511 磁性覆层测厚仪 (0~1250 μm)

  • 制造商: TIME
    Model: 2511
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Specifications:

Probe Types: F

Measuring methods: magnetic induction

Measuring range: 0 to 1250 μm

Minimum resolution: 1μm; 5μm; 10μm

Tolerance: ±(3%H+1)μm; ± (3%H+1.5)μm; ± (3%H+10)μm

H means the thickness of tested piece

Measuring condition

Min. curvature radius (mm): Convexity 1.5

Min. testing area diameter (mm): Ø7

Critical thickness of substrate (mm): 0.5

Power supply: Battery AAA (2pcs)

Working temperature: 0~40°C

Dimensions (mm): 110×50×23

Weight (g): 100

Standard Delivery

Main unit

Substrate

2 x AAA 1.5V battery

Waist pack for main unit

TIME certificate

Warranty card

Instruction manual

Details

Datasheet



Catalog 2019
