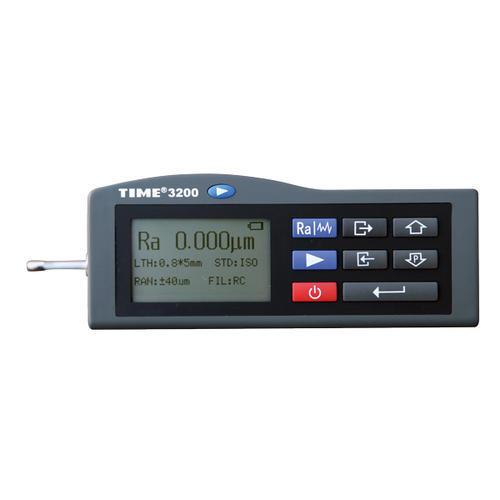

TIME 3200 粗糙度仪

Roughness parameters; Ra, Rz, Ry, Rq, Rt, Rp, Rmax, Rv, R3z, RS, RSm, Sk, Rmr

Assessed profiles: Roughness profile (R) Primary profile (P)

Measuring system: Metric, imperial

Display Resolution: 0.001 μ m

Data output: RS232

Pickup Measuring range: ±20μ m, ±40μ m, ±80μ m

Cutoff length (L): 0.25mm/0.8mm/2.5mm/Auto

Evaluation length: 1~5L (selectable)

Tracing length: 3-7L(selectable)

Digital filter: RC, PC-RC, Gauss, D-P

Max. Tracing length: 17.5mm/0.71inch

Min. Tracing length: 1.3mm/0.052inch

Pick-up: Standard pickup TS100, inductive, diamond stylus radius 5μm, angle of stylus 90°

Tolerance: ≤±10%

Repeatability: ≤6%

Power: Li-ion battery rechargeable

Dimensions (mm): 140×52×48

 Weight (g): 440

Standard Delivery

Main unit

TS100 standard pickup

Roughness test plate Ra

Charger

Protection nose

Steel support

Dataview

Communication cable

TIME certificate

Warranty card
