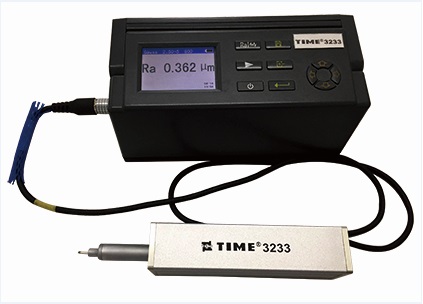

TIME 3233 粗糙度仪 (±400µm, ±25µm)

Assessed profile: R (Roughness), W (Waveness), P (Primary profile)

Measuring range: ±400µm, ±25µm

Filtering: RC, PCRC, Gauss, D-P, ISO 13565

Parameters

R: Ra, Rp, Rv, Rt, Rz, Rq, Rsk, Rku, Rc, RS, RSm, Rlo, RHSC, Rpc, Rmr(c), RzjIS, R3y, R3z

W: Wa, Wp, Wv, Wt, Wz, Wq, Wsk, Wku, Wc, WS, WSm, Wlo, WHSC, Wpc, Wmr(c), WzjIS

P: Pa, Pp, Pv, Pt, Pz, Pq, Psk, Pku, Pc, PS, PSm, Plo, PHSC, Ppc, Pmr(c), PzjIS Rk: Rk, Rpk, Rvk, Mr1, Mr2

Cut-off length: 0.08mm, 0.25mm, 0.8mm, 2.5mm, 8mm, 10mm

Max. Tracing length: 50mm

Analysis graphs: ADC, BAC

Evaluation length: 1L-5L

Resolution: 0.001μm/50μm;0.016μm/800μm

Tolerance: ±5%

Display: LCD

Memory: 10 groups of primary data

Data output: RS232, USB

Power supply: Li battery/AC adapter

Dimensions (mm): 409×96×98

Weight (g): 2300

Optional Accessory

Printer TA230

PC software TIMESurf

RS232 communication cable
