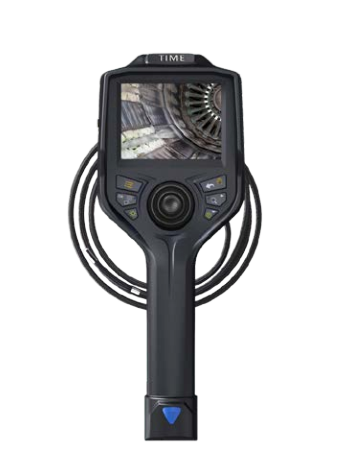

TIME 45 先进的视频调音器 (Φ3.9; Φ6.0)

Technical Specifications

Cable System

Probe Dia (mm): Φ3.9; Φ6.0

Camera Pixel: 450000; 450000

Depth of field (mm):

5-50mm/10-100mm/20mm -∞

5-50mm/8-150mm

10-100mm

10-100mm/ 20-120mm

Field of view: 120°

Light: LED

Illuminance: Max 30000Lx

Length of Cable: 1.0m/2.0m/3.0m; 1.0m/2.0m/10.0

Durable device: 42mm buffer protection for insertion tube and handle connection

Bending Direction: 360°

Bending Degree: Max 190° (10m cable 90°)

Probe Positioning: Automatic positioning with damping (optional fastening locking device)

Wireless Transmission: WIFI (T45 series optional)

Host System

Display: 3.5 inch / 5.7 inch color TFT LCD

Picture Resolution: 640×480 / 1280×720 / 1920×1080

Language: Chinese, English, Russian and other eight languages are available

Shell structure material: Anti-fall engineering materials

Waterproof, dustproof: Probe, objective lens and pipeline can withstand IP67 waterproof

Machine structure: Handheld integrated host

Photo/video file format: jPEG/MOV

Data interface: HDMI video output interface, Micro USB port

Working Time: ≥8 hours, built-in power supply up to 8 hours

Battery capacity: Double group 3.7V, 3200mAh×2

Charging: DC5V, max 1A

Weight: ≤0.55Kg

Compatibility: replaceable/upgraded mainframe, compatible with insertion tubes of different diameters

Parts

Storage: Capacity 8G TF card (maximum support 32G)

Power: Removable rechargeable lithium battery (optional with built-in rechargeable lithium battery)

Standard Delivery: Instrument box, endoscope, rechargeable battery, card reader, memory card, data cable, charger, manual, certificate
