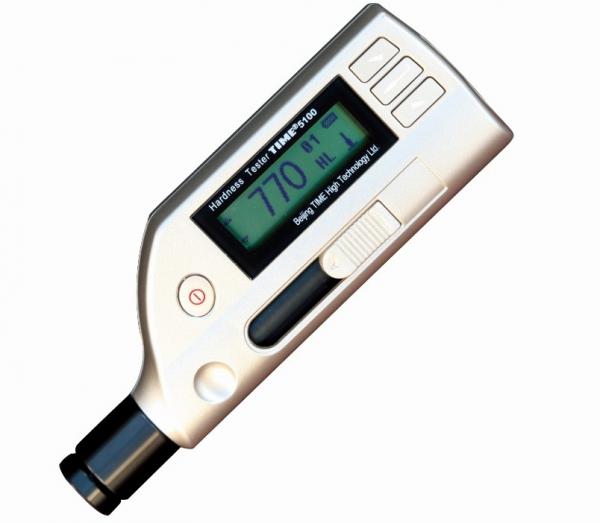

TIME 5100 里氏硬度计 (Pen-type; Leeb)
制造商: TIME Model: 5100 来源: China 保障: 12 Month - 报价要求
- 联系
Specifications:
Impact device: D integrated
Hardness scales: HLD, HB, HRC, HRB, HV, HS
Accuracy: ±6 HLD(760 ±30HLD)
Memory: 270 average readings in 9 group files
Output: RS232 to printer
Min. surface roughness of work piece: 1.6μm (Ra)
Max. work piece hardness: 960HLD
Min. radius of work piece (convex/concave): Rmin = 50mm (with support ring Rmin=10mm)
Min. work piece weight: 2~5kg on stable support
0.05~2kg with compact coupling
Min. work piece thickness coupled: 5mm
Min. thickness of hardened layers: 0.8mm
Indentation depth: Impact devices data
Continuous working time: 8h (without backlight)
Power: AAA 1.5V batteries
Operating temperature: 0~40℃
Dimensions (mm): 155×55×25
Weight (g): 180
Standard Delivery
Main unit
Test block HLD
USB connecting cable
Cleaning brush
2 x Battery AAA 1.5V
TIME certificate
Warranty card
Optional Accessories
Support rings
Dataview Software
