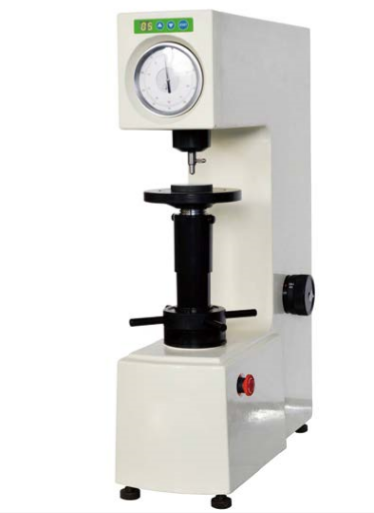

TIME 6101 洛氏硬度机 (98,07n (10kgf))

Initial test force: 98.07n (10kgf)

Total test force: 588.4n(60kgf), 980.7n(100kgf), 1471n(150kgf)

Loading method: Automatic (Loading/ Dwell/ Unloading)

Resolution: 0.5HR

Dwell time: 2-60 seconds

Max. height of specimen: 175 mm

Throat: 165mm

Power supply: AC220V, 50Hz

Execute standard: ISO 6508, ASTM E-18, jIS Z2245, GB/T 230.2

Dimension: 525×210×700mm,

Packing Dimension: 650×370×950mm

Weight

Net Weight: 78kg,

Gross Weight: 100kg

Standard Delivery

1 set Instrument Main Body

ф1.588mmBall Indenter

Large Plane Test Table

Hardness Block 60~70 HRC

Hardness Block 80~100 HRB

Power Cable

Level

Inner Hexagon Spanner

Diamond Rockwell Indenter

Middle Plane Test Table

V-shaped Test Table

Hardness Block 20~30 HRC

Weight A

Weight B

Weight C

2 x Fuse 2A

4 x Horizontal Regulating Screw

Spanner

Anti-dust cover

Usage Instruction Manual
