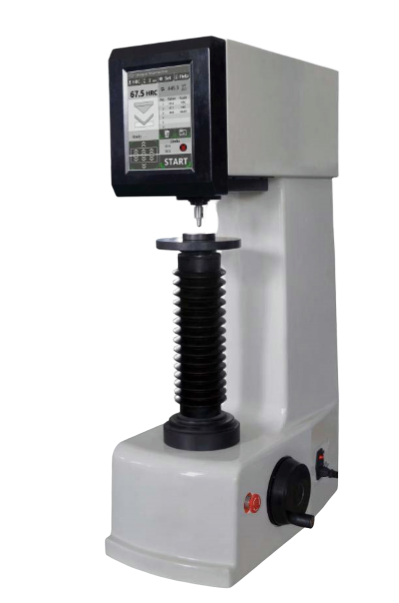

TIME 6106 洛氏硬度机 (3kgf (29,42n), 10kgf (98,07n))

  • 制造商: TIME
    Model: 6106
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267

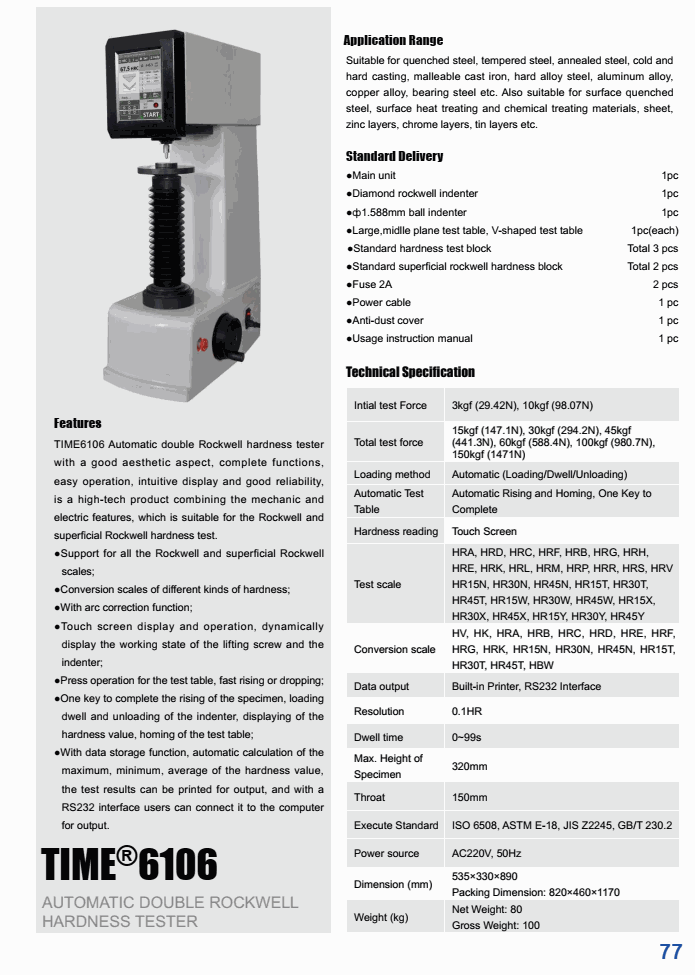

Intial test Force: 3kgf (29.42n), 10kgf (98.07n)

Total test force

15kgf (147.1n), 30kgf (294.2n), 45kgf (441.3n), 60kgf (588.4n), 100kgf (980.7n), 150kgf (1471n)

Loading method: Automatic (Loading/Dwell/Unloading)

Automatic Test Table: Automatic Rising and Homing, One Key to Complete

Hardness reading: Touch Screen

Test scale:

HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15y, HR30y, HR45y

Conversion scale:

HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HBW

Data output: Built-in Printer, RS232 Interface

Resolution: 0.1HR

Dwell time: 0~99s

Max. height of specimen: 320mm

Throat: 150mm

Execute standard: ISO 6508, ASTM E-18, jIS Z2245, GB/T 230.2

Power source: AC220V, 50Hz

Dimension (mm): 535×330×890

Packing Dimension: 820×460×1170

Weight (kg)

net Weight: 80

Gross Weight: 100

Standard Delivery

Main unit

Diamond rockwell indenter

ф1.588mm ball indenter

Large,midlle plane test table, V-shaped test table

3x Standard hardness test block

2x Standard superficial rockwell hardness block

2x Fuse 2A

Power cable

Anti-dust cover

Usage instruction manual
