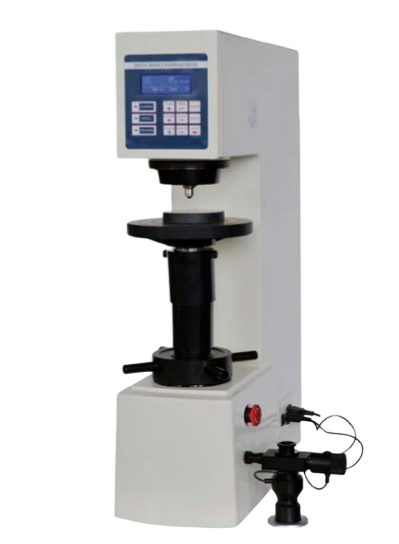

TIME 6202 洛氏硬度计 (3.18~653HBW)

Test Force:

612.9n(62.5kgf); 4903n(500kgf)

980.7n(100kgf); 7355n(750kgf)

1226n(125kgf); 9807n(1000kgf)

1839n(187.5kgf) 14710n(1500kgf)

2452n(250kgf); 29420n(3000kgf)

Test Range: 3.18~653HBW

Hardness Reading: LCD Display

Microscope: 20× Digital Measuring Microscope

Minimum Division Value of Drum Wheel: 1.25μm

Dwell Time: 0~60s

Max. Height of Specimen: 220mm

Throat: 135mm

Power Supply: AC220V, 50Hz

Execute Standard:

ISO 6506, ASTM E10-12, jIS Z2243, GB/T 231.2



Packing Dimension: 650×435×1025mm


net Weight: 130kg

Gross Weight: 160kg

Standard Delivery

Main unit

Ф2.5mm, Ф5mm, Ф10mm Ball Indenter

Small Plane Test Table

Standard hardness Block 150~250 HBW 10/3000

2 x Fuse 2A

Anti-dust Cover

20× Digital Measuring Microscope

Large Plane Test Table

V-shaped Test Table

Standard hardness Block 150~250 HBW 5/750

Power Cable

Inner Hexagon Spanner 3mm

Instruction manual
