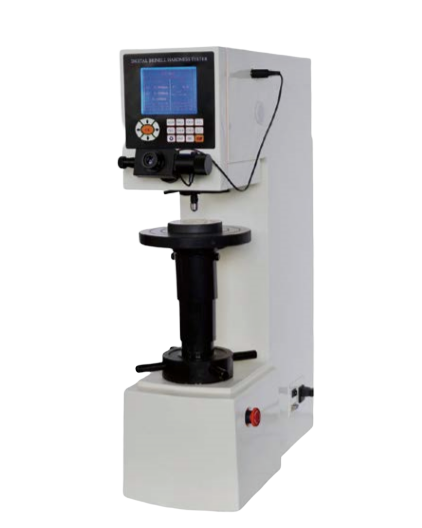

TIME 6205 洛氏硬度计 (3,18 ~ 653HBW)

  • 制造商: TIME
    Model: 6205
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267


Test Force:

612.9n(62.5kgf), 980.7n(100kgf), 1226n(125kgf), 1839n(187.5kgf), 2452n(250kgf), 4903n(500kgf), 7355n(750kgf), 9807n(1000kgf), 14710n(1500kgf), 29420n(3000kgf)

Test Range: 3.18~653HBW

Loading Method: Automatic (Loading/Dwell/Unloading)

Hardness Reading: Touch Screen Display

Conversion Scale:

HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS

Data Output: Built-in Printer, RS232 Interface

Shifting between Objective and Indenter: Automatic Recognition and Shifting (Three Indenters, Two Objectives)

Total Magnification: 20×, 40×

Resolution: 1.25μm, 0.625μm

Dwell Time: 0~60s

Max. Height of Specimen: 260mm

Throat: 150mm

Power Supply: AC220V, 50Hz

Execute Standard:

ISO 6506, ASTM E10-12, jIS Z2243, GB/T 231.2

Dimension: 535×260×890mm

Packing Dimension: 820×460×1170mm

Weight (kg)

net Weight: 150

Gross Weight: 180

Standard Delivery

Main unit

20× Digital Measuring Eyepiece

1×, 2× Objective

Ф2.5mm, Ф5mm, Ф10mm Ball Indenter

Small Plane Test Table

Large Plane Test Table

V-shaped Test Table

Power Cable

Hardness Block 150~250 HBW 10/3000

Hardness Block 150~250 HBW 5/750

2x Fuse 2A

Inner Hexagon Spanner 3mm

Anti-dust Cover

Usage Instruction Manual


Catalog 2019
