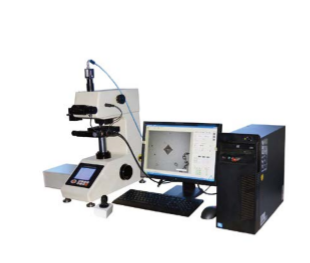

TIME 6610AT 全自动显微硬度计 (1HV~2967HV)

Test force:

0.098n(10gf), 0.246n(25gf), 0.49n(50gf), 0.98n(100gf), 1.96n(200gf),2.94n(300gf), 4.90n(500kgf), 9.80n(1000gf)

Test Range: 1HV~2967HV

Test Mode: HV/HK

Loading Method: Automatic (Loading/Dwell/Unloading)

Shifting between Objective and Indenter: Automatic Shifting

Conversion Scale

HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS, HB

Data Output: Built-in Printer WORD or EXCEL Report with Curve Chart

Hardness Reading: Indentation Displaying and Automatic Measuring on PC

Total Magnification: 100×, 400×

Resolution: 0.0625μm

Dwell Time: 0~60s

Light Source: Halogen Lamp

X-y Test Table

Size: 110×110mm; Travel: 50×50mm; Resolution: 0.002mm

Max. Height of Specimen: 100mm

Throat: 98mm

Power Supply: AC220V, 50Hz

Execute Standard: ISO 6507, ASTM E384, jIS Z2244, GB/T 4340.2

Dimension: 480×325×545mm

Packing Dimension: 600×360×800mm

Weight (kg)

net Weight: 31

Gross Weight: 44

Standard Delivery

Main unit

Diamond Micro Vickers Indenter

6 x Weights

Motorized Test Table

Thin Specimen Test Table

4 x Horizontal Regulating Screw

2 x Fuse 1A

Power Cable

Hardness Block 400~500 HV0.2

Anti-dust Cover

Computer (Hard disk: 500G, Memory: 2G, 19 inch LCD screen)

CCD Camera

USB Softdog

RS232 Cable

Measuring Software

10×Digital Measuring Eyepiece

10×、40× Objective

Weight Axis

Flat Clamping Test Table

Filament Clamping Test Table


Halogen Lamp 12V, 15~20W

2 x Screw Driver

Hardness Block 700~800 HV1

Usage Instruction Manual

Ink Jet Printer

1.5× Adapter

Control Cables

Motorized Test Table Control Box
