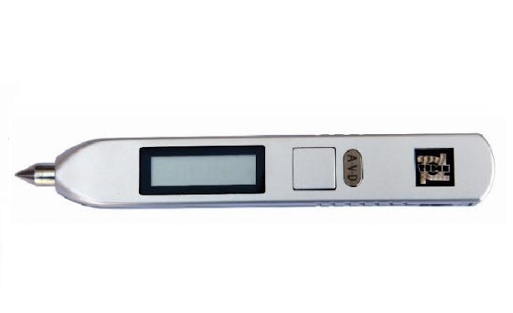

TIME 7126 笔式测振仪 (0,01-1,999 mm; ± 5% ± 2)

Parameters: Acceleration, Velocity, Displacement

Acceleration:0.1-199.9m/s2(peak)

Velocity: 0.1-199.9 mm/s (RMS)

Displacement: 0.01-1.999 mm (peak-peak)

Testing range

Velocity: 10Hz~1KHz

Displacement: 10Hz~500Hz

Acceleration:10Hz~1KHz

Frequency range

Tolerance: ±5%±2

Display: 3½digits LCD

Power: Two button batteries(LR44 or SR44)

Battery capacity: Approx. 4.5 hours working continuously

Operating temperature: 0℃~40℃

Humidity: <85%

Dimensions (mm): 150×22×18

Weight (g): 55(including batteries)

Standard Delivery 　

Main unit

2 x Battery

Protection pocket

TIME certificate

Warranty card

Instruction manual
