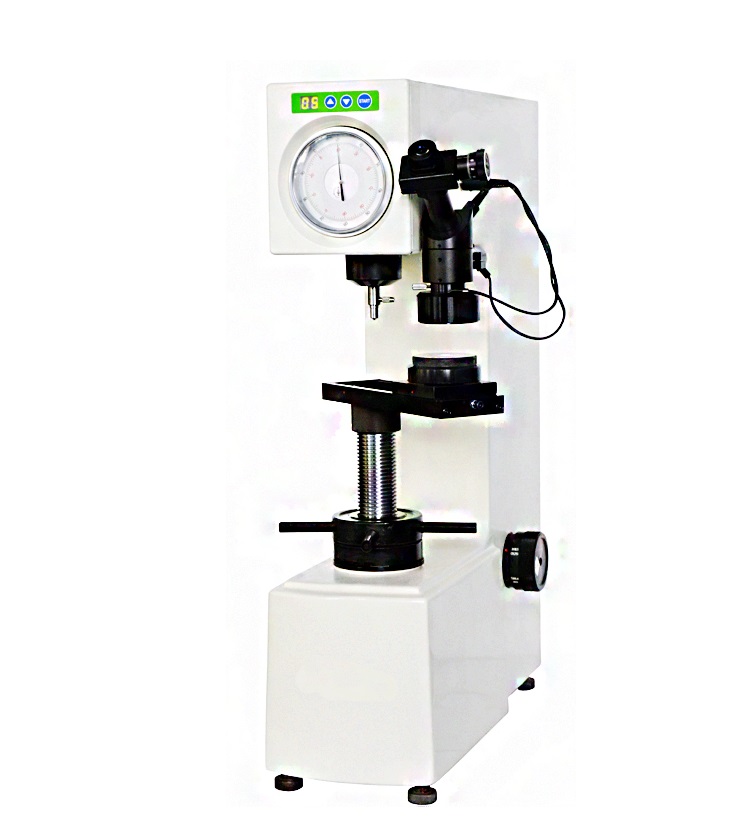

TIME HBRV-187.5 电动布洛维硬度计

  • 制造商: TIME
    Model: HBRV-187.5
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Rockwell Test Force:

60kgf (558.4n), 100kgf (980.7n), 150kgf (1471n)

Brinell Test Force:

30kgf (294.2n), 31.25kgf (306.5n), 62.5kgf (612.9n), 100kgf (980.7n), 187.5kgf (1839n)

Vickers Test Force: 30kgf (294.2n), 100kgf (980.7n)

Hardness Reading:

Rockwell: Dial, Brinell & Vickers: Check Hardness Table

Magnification: Brinell: 37.5×, Vickers: 75×

Resolution:

Rockwell: 0.5HR, Brinell: 4μm, Vickers: 2μm

Dwell Time: 2~60s

Max. Height of Specimen: Rockwell: 175mm, Brinell: 100mm, Vickers: 115mm

Throat: 165mm

Power Supply: AC220V, 50Hz

Execute Standard: ISO 6508, ASTM E-18, jIS Z2245, GB/T 230.2 ISO 6506, ASTM E10-12, jIS Z2243, GB/T 231.2 ISO 6507, ASTM E92, jIS Z224, GB/T 4340.2

Dimension: 520×240×700mm

Packing Dimension: 650×370×950mm

Weight

net Weight: 80kg,

Gross Weight: 105kg

Standard Delivery

Instrument Main Body

Diamond Vickers Indenter

Slipped Test Table

Large Plane Test Table

15× Digital Measuring Eyepiece

Microscope System (include the inside light and outside light)

Hardness Block 60~70 HRC

Hardness Block 80~100 HRB

5 x Weights 0, 1, 2, 3, 4

2 x Fuse 2A

Level

Screw Driver

Diamond Rockwell Indenter

ф1.588mm, ф2.5mm, ф5mmBall Indenter

Middle Plane Test Table

V-shaped Test Table

2.5×, 5× Objective:

Hardness Block 150~250 HBW 2.5/187.5

Hardness Block 20~30 HRC

Hardness Block 700~800 HV30

Power Cable

4 x Horizontal Regulating Screw

Spanner

Anti-dust Cover

Usage Instruction Manual

Details

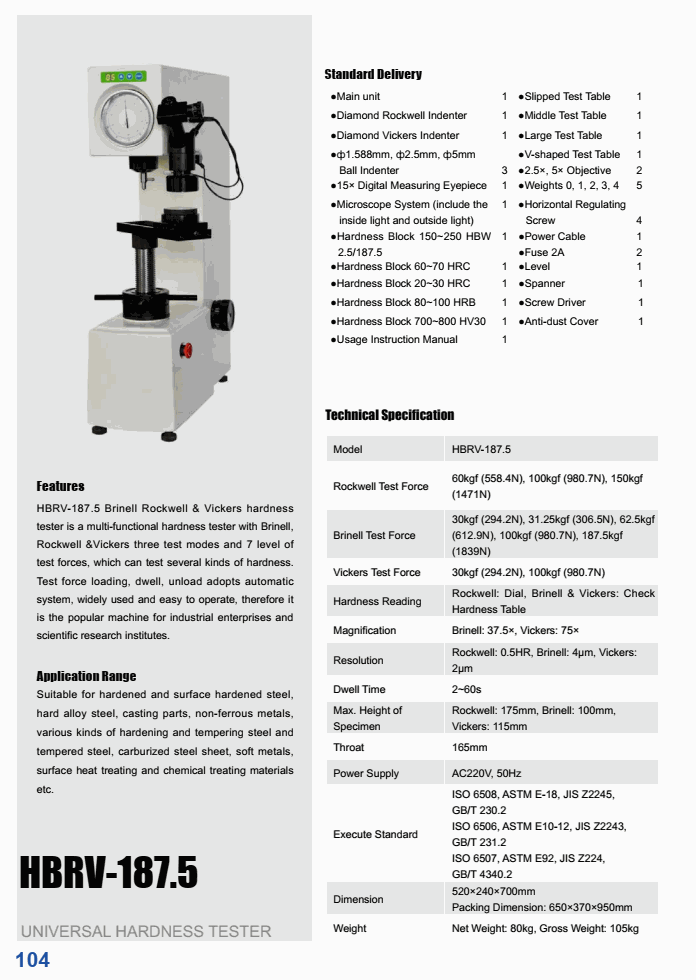

Catalog 2019
