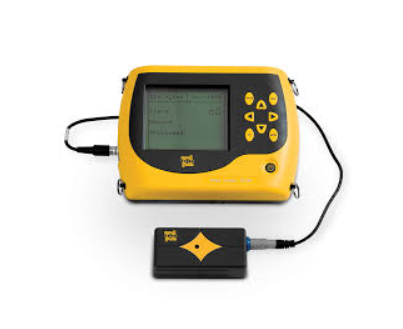

TIME TC100 金属钢筋定位仪/ 带数据输入器 (6mm-90mm/ 7mm-200mm)

Covering layer thickness measuring range:

Range Ⅰ :6mm-90mm

Range Ⅱ :7mm-200mm

Rebar diameter measuring range:

Ø6mm- Ø50mm

Tolerance of covering layer thickness:

Range Ⅰ; Range Ⅱ

±1mm: 6mm-59mm; 7mm-79mm

±2mm: 60mm-69mm; 80mm-119mm

±4mm: 70mm-90mm; 120mm-180mm

Display: Large graphic display with backlight

Operating temperature: -10℃~ 40℃

Relative humidity: <90%

Dimension (mm): 210 x 153 x 90

Weight (g): 880

Standard Delivery (TC100)

●Main unit

●Transducer

●Software

●Signal cable

●Shoulder strap

●6 x AA battery (LR6)

●2 x Key

●TIME certificate

●Warranty card

●Instruction manual
