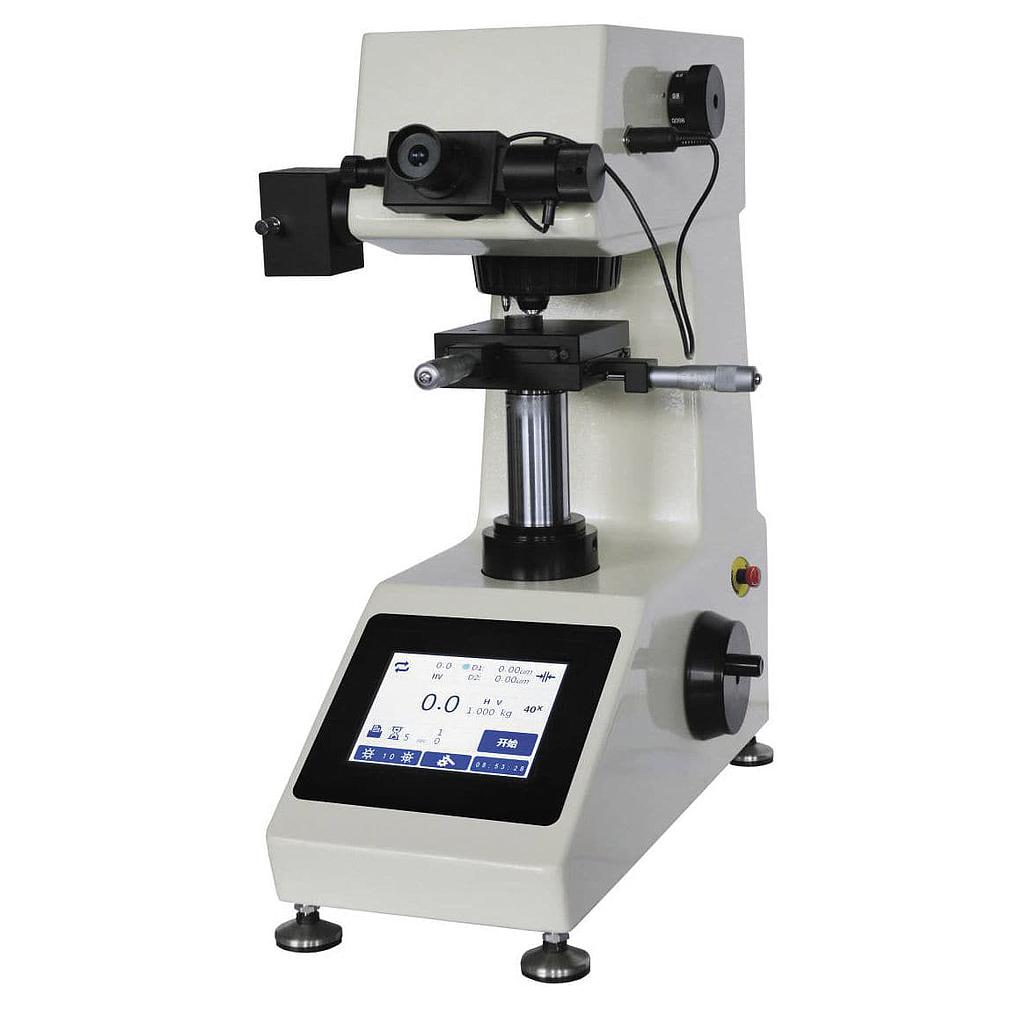

TIME TH715 显微维氏硬度计 (1HV ~ 2967HV)
制造商: TIME Model: TH715 来源: China 保障: 12 Month - 报价要求
- 联系
Test Force:
0.098n(10gf), 0.246n(25gf), 0.49n(50gf), 0.98n(100gf), 1.96n(200gf), 2.94n(300gf), 4.90n(500gf), 9.80n(1000gf)
Test Range: 1HV~2967HV
Test Mode: HV/HK
Loading Method: Automatic (Loading/Dwell/Unloading)
Conversion Scale:
HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS, HB
Data Output: Built-in Printer, RS232 Interface
Shifting between Objective and Indenter: Automatic
Total Magnification: 100×, 400×
Resolution: 0.0625μm
Dwell Time: 0~60s
Light Source: Halogen Lamp
X-y Test Table
Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height of Specimen: 100mm
Throat: 98mm
Power Supply: AC220V, 50Hz
Execute Standard:
ISO 6507, ASTM E384, jIS Z2244, GB/T 4340.2
Dimension:
480×325×545mm
Packing Dimension: 600×360×800mm
Weight (kg)
net Weight: 31
Gross Weight: 44
Main unit
Diamond Micro Vickers Indenter
6 x Weights
Cross Test Table
Thin Specimen Test Table
4 x Horizontal Regulating Screw
2 x Fuse 1A
Power Cable
Hardness Block 400~500 HV0.2
Anti-dust Cover
10×Digital Measuring Eyepiece
10×、40× Objective
Weight Axis
Flat Clamping Test Table
Filament Clamping Test Table
Level
Halogen Lamp 12V、15~20W
2 x Screw Driver
Hardness Block 700~800 HV1
Usage Instruction Manual
