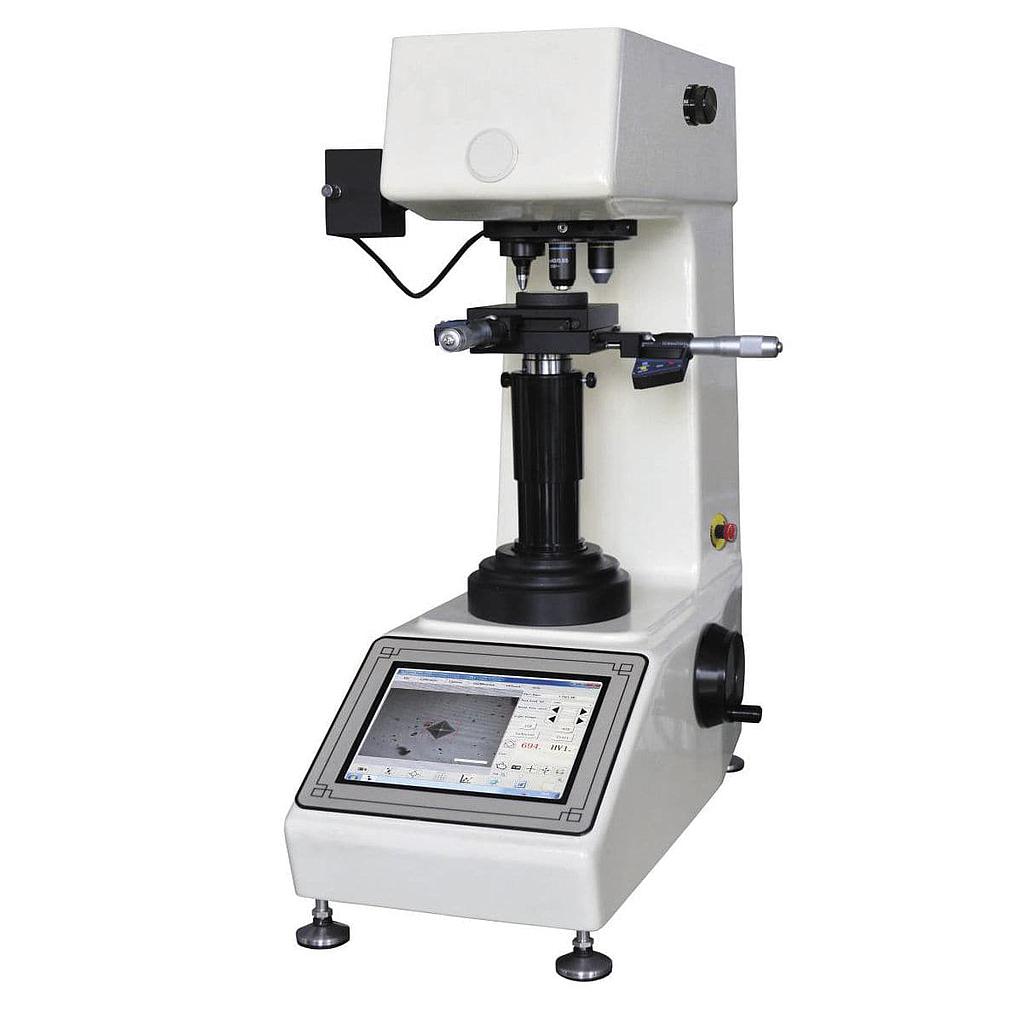

TIME TMVT-1 智能化数显显微硬度计 (1HV~2967 HV)

Test Force:

0.098n(10gf), 0.246n(25gf), 0.49n(50gf), 0.98n(100gf), 1.96n(200gf),2.94n(300gf), 4.90n(500kgf), 9.80n(1000gf)

Test Range:1HV~2967HV

Test Mode: HV/HK

Loading Method: Automatic (Loading/Dwell/Unloading)

Shifting between Objective and Indenter: Automatic Shifting

Computer: CPU: Intel I5, Memory: 2G, SSD: 64G

Conversion Scale: 1.30 Million

CCD Pixel:

HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15n, HR30n, HR45n, HR15T, HR30T, HR45T, HS, HBW

Data Output: WORD or EXCEL Report with Curve Chart

Hardness Reading: Indentation Displaying and Automatic Measuring on Touch Screen

Objective: 10× (Observe), 40× (Measure)

Resolution: 0.025μm

Dwell Time: 0~60s

Light Source: Halogen Lamp

X-y Test

Table Size: 120×120mm; Travel: 25×25mm; Resolution: 0.003mm

Max. Height of Specimen: 185mm

Throat: 130mm

Power Supply: AC220V, 50Hz

Execute Standard: ISO 6507, ASTM E384, jIS Z2244, GB/T 4340.2

Dimension: 560×335×675mm,

Packing Dimension: 650×380×960mm

Weight

net Weight: 48kg

Gross Weight: 62kg

Accessories

Instrument Main Body

10×, 40× Objective

6x Weights

Digital Cross Test Table

Flat Clamping Test Table

4 x Horizontal Regulating Screw

2 x Fuse 1A

Power Cable

Hardness Block 400~500 HV0.2

Anti-dust Cover

Touch Screen Remote Control

Mouse

10× Eyepiece

Diamond Micro Vickers Indenter

Weight Axis

Thin Specimen Test Table

Filament Clamping Test Table

Level

Halogen Lamp 12V, 15~20W

2x Screw Driver

Hardness Block 700~800 HV1

U disk

Touch Pen

Usage Instruction Manual
